Humsenk 5120 Wh solar battery and 8000W inverter solar charger kit
Humsienk 7680Wh 51.2V 150Ah lithium-ion battery with a white 8000W inverter solar charger

Humsienk 48V 8kW Hybrid Inverter | 120/240V Split-Phase, 10ms UPS, Dual MPPT – Home Backup, Off-Grid & Solar Storage

$1,999.99 USD $1,099.99 USD SAVE $900.00 USD

5% OFF New Arrival Sale Countdown

%-D%!D:Day,Days; %-H%!H:hour,hours; %-M%!M:min,mins; %-S%!S:sec,secs;

Hurry! Only Left in Stock.

Option: 8kW Inverter

8kW Inverter
with 5.12kWh Wall-mounted Battery
with 5.12kWh Golf Cart Battery
with 7.68kWh Golf Cart Battery
with 5.12kWh Server Rack Battery
Inverter Tech Specs
统一自适应表格

AC mode

Parameter Value
Rated input voltage120(L1/N, L2/N)/240Vac(L1/L2)
Permitted parallel number1~6
Input phase voltage range(85Vac~140Vac)±2%
Frequency50Hz/60Hz (Auto detection)
Frequency Range47±0.3Hz~55±0.3Hz(50Hz);57±0.3Hz~65±0.3Hz(60Hz)
Overload/short circuit protectionCircuit breaker
Maximum efficiency of municipal electricity charging>95%
Conversion time (bypass and inverter)10ms (typical)
AC reverse protectionYes
Maximum bypass phase overload current2pole, 50A/50A(L1/L2)

Inverter mode

Parameter Value
Output voltage waveformPure sine wave
Rated output power (VA)Split phase:8000W; Single phase: 6000W
Rated output power (W)Split phase:8000W; Single phase: 6000W
Power factor1
Rated output voltage (Vac)120Vac (L1/N, L2/N)/240Vac(L1/L2)
Output voltage error±5%
Output frequency range (Hz)50Hz±0.3Hz/60Hz±0.3Hz
Maximum efficiency of inverter output>93%
Overload protection(105% < load < 110%) ±5%: report error and turn off the output after 5 minutes; (110% < load < 125%) ±5%: report error and turn off the output after 10 seconds; Load > 125% ±5%: report error and turn off the output after 5 seconds;
Peak powerSplit phase: 12000VA; Split phase: 12000VA
Loaded motor capability5HP
Bypass circuit breaker phase specification2pole, 50A/50A(L1/L2)
Rated battery input voltage51.2V (Minimum starting voltage 44V)
Battery voltage range40.0Vdc~58.6Vdc±0.6Vdc (Undervoltage alarm/shutdown voltage/overvoltage alarm /overvoltage recovery... settable on LCD screen)
Power saving mode self-consumptionLoad per phase is null or less than 25W enter power-saving mode

AC charging

Parameter Value
Battery typeLead acid and lithium battery
Maximum charge current (can be set)120A
Charge current error±5Adc
Charge voltage range40~58.6Vdc
Short circuit protectionCircuit breaker or blown fuse
Circuit breaker phase specifications2pole, 50A/50A(L1/L2)

PV charging

Parameter Value
Number of MPPT groups2
Maximum PV open circuit voltage500Vdc
Start-up Voltage120V
PV operating voltage range90Vdc~485Vdc
MPPT voltage range90Vdc~450Vdc
Battery voltage range40~58.6Vdc
Maximum PV input power5000W+5000W
Maximum PV input current18A+18A
PV charge current (can be set)0~160A
Charging short circuit protectionBlown fuse
Wiring protectionReverse polarity protection

Hybrid charging Max charger current specifications (AC charger+PV charger)

Parameter Value
Max charger current (can be set)0~160A

Certified & specifications

Parameter Value
EMC certification levelFCC part15, CLASS B
Operating temperature range14°F to 131°F(>113°F derating)/-10°C to 55°C(>45°C derating)
Storage temperature range-4°F~140°F / -25°C~60°C
Humidity range5% to 95% (Conformal coating protection)
Noise≤60dB
Heat dissipationForced air cooling, variable speed of fan
Communication interfaceUSB/RS485(WiFi/GPRS)/Dry node control
Size (L*W*D)580×359×127(mm)/22.83×14.13×5(inch)
Weight15.9kg±3%/35.05lb±3%
Battery Tech Specs
48V Battery Comparison
Parameter Wall-Mount 100Ah Golf Cart 100Ah Server Rack 100Ah Golf Cart 150Ah
Dimensions 550×485×185.5 mm
21.65×19.09×7.30 in		 593×266×216 mm
23.35×10.47×8.50 in		 440×500×133 mm
17.32×19.69×5.24 in		 680×320×262 mm
26.77×12.60×10.31 in
Weight 50 kg (110.23 lb) 41 kg (90.39 lb) 43.75 kg (96.45 lb) 63.2 kg (139.33 lb)
Capacity / Energy 100 Ah / 5.12 kWh 100 Ah / 5.12 kWh 100 Ah / 5.12 kWh 150 Ah / 7.68 kWh
Charge Voltage 56.8 – 58.4 V 57.6 ± 0.2 V 57.6 ± 0.2 V 57.6 ± 0.2 V
Charge Current
(Rec / Max)		 20 A / 100 A 20 A / 100 A 20 A / 100 A 30 A / 200 A
Discharge Current
(Rec / Max)		 50 A / 100 A 50 A / 200 A 50 A / 100 A 75 A / 200 A
Charge Temperature 2 °C ~ 50 °C 0 °C ~ 45 °C 0 °C ~ 55 °C 0 °C ~ 45 °C
Storage Temperature -20 °C ~ 45 °C -10 °C ~ 45 °C -20 °C ~ 45 °C 0 °C ~ 55 °C
Ingress Protection IP54 IP65 IP65 IP65
Download

User Manual

Tech Specs

Humsienk 48V 8000W Solar Hybrid Inverter – All‑in‑One Home Power Solution

This 48V 8000W solar hybrid inverter integrates a pure sine wave inverter, dual‑channel MPPT solar charger (PV1 5000W + PV2 5000W), and a high‑current battery charger (up to 160A from PV+AC) into one compact unit. Delivering 120V/240V split‑phase output, it is the perfect choice for standard home power needs, ensuring reliable electricity for daily appliances while reducing grid dependence.
Humsienk 48V 8000W solar hybrid inverter all-in-one with MPPT and 160A battery charger for home power.PCHumsienk 48V 8000W solar hybrid inverter all-in-one with MPPT and 160A battery charger for home power. Mobile

Scalable Power – Parallel up to 6 Units for 48kW Output

Available in 8000W and 12000W models, this cost‑effective inverter series meets everything from everyday household demands to high‑energy workshops. With the ability to parallel up to 6 units, you can achieve a massive 48kW (8kW models) or 72kW (12kW models) total output, making it ideal for villas, large RVs, small shops, and even outdoor camping. Expand your system as your energy needs grow.
Humsienk 8000W and 12000W solar hybrid inverters parallel up to 6 units for 48-72kW scalable output

8000W High Output – Run All Your Heavy Appliances Without Tripping

Engineered to power multiple high‑load devices simultaneously, this inverter effortlessly supports appliances ranging from 50W LED lights to 2500W electric motors. Whether it’s air conditioners, refrigerators, washing machines, or power tools, the Humsienk 8000W inverter delivers stable, surge‑ready power that prevents overloads and ensures your entire home runs freely and reliably.
Humsienk 8000W inverter powers whole-home appliances from 50W to 2500W without overloading

Dual Independent MPPT Trackers – 99% Efficiency, 10000W Solar Input

Equipped with two independent MPPT channels, each rated at 5000W (total 10000W DC input), this inverter maximizes solar utilization with up to 99% conversion efficiency. The wide MPPT voltage range (90–450Vdc, max 500Vdc) allows flexible panel configurations, including different orientations or specifications. Dual‑channel design also improves system stability by preventing single‑channel overload and accelerates battery charging.
Humsienk dual-channel MPPT solar input up to 10000W with 99% efficiency and 90-450Vdc range

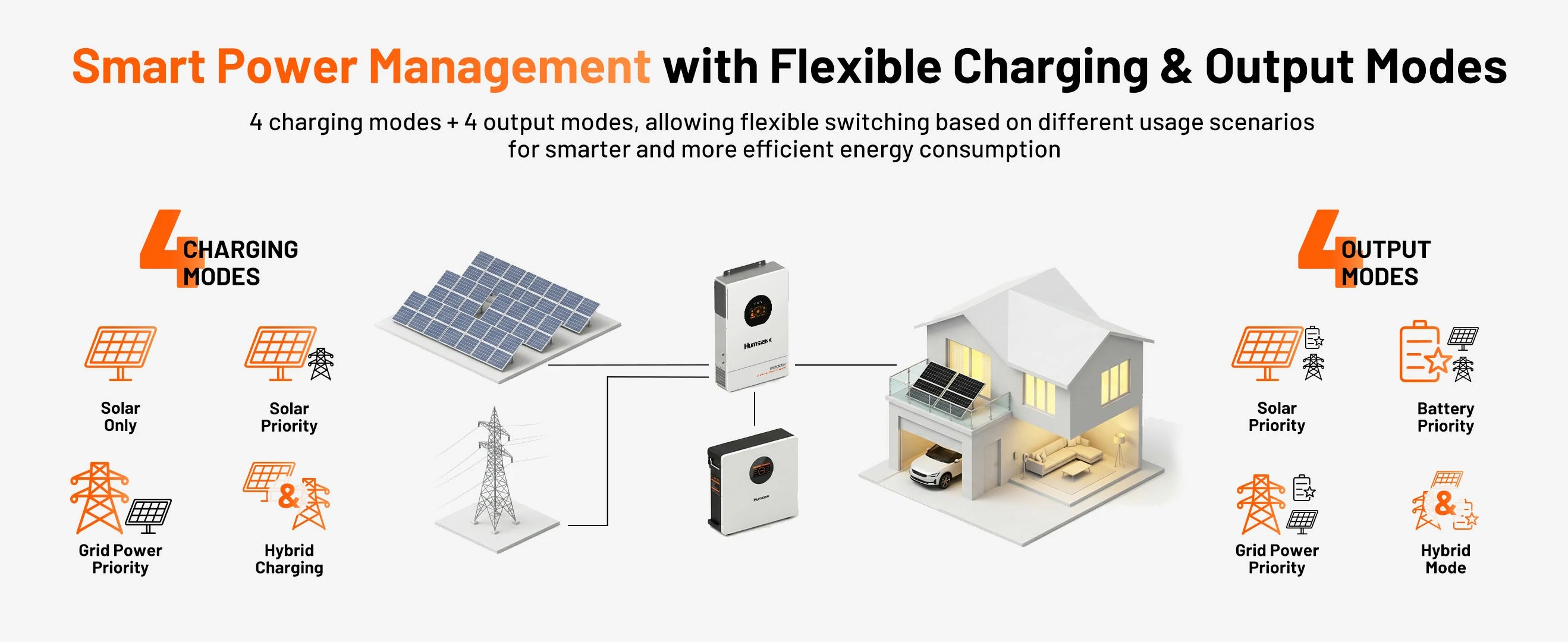

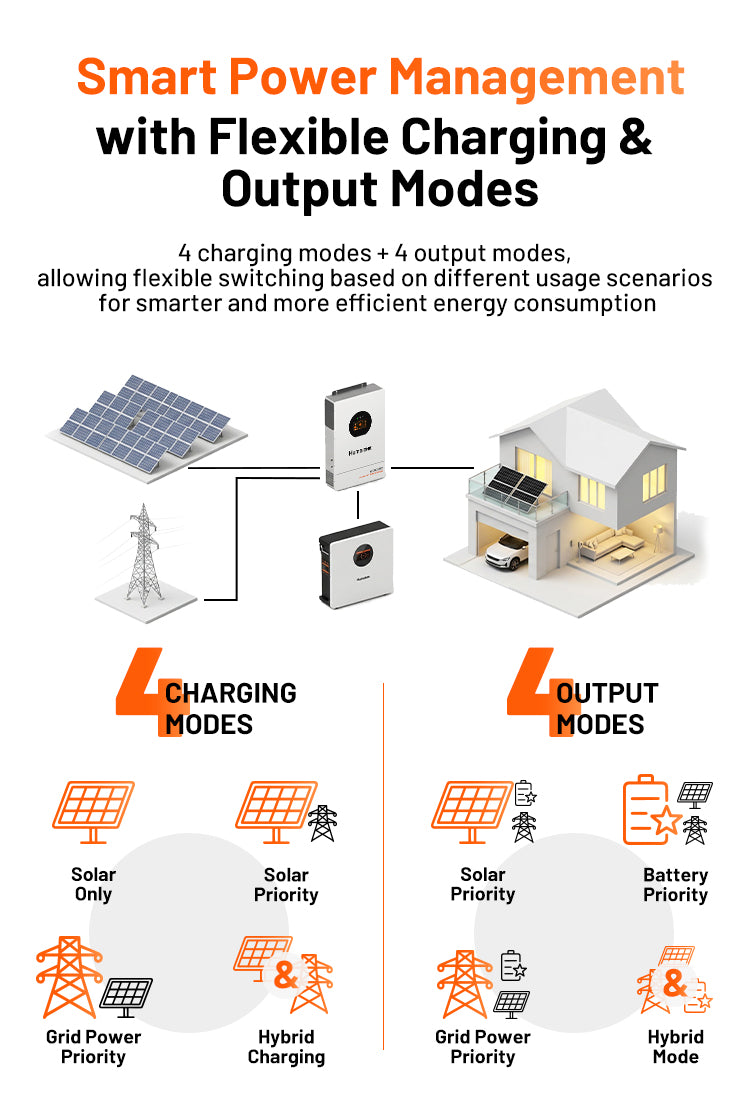

4 Charging Modes + 4 Output Modes – Intelligently Manage Your Energy

Take full control of your power flow with four flexible charging modes (Solar Only, Solar Priority, Battery Priority, Grid Priority, and Hybrid Charging) combined with multiple output strategies. The inverter automatically switches between modes based on your usage scenario, ensuring the most efficient energy consumption – whether you want to maximize self‑consumption, minimize grid draw, or keep batteries fully charged for backup.
Humsienk smart inverter with 4 charging modes and 4 output modes for flexible energy management

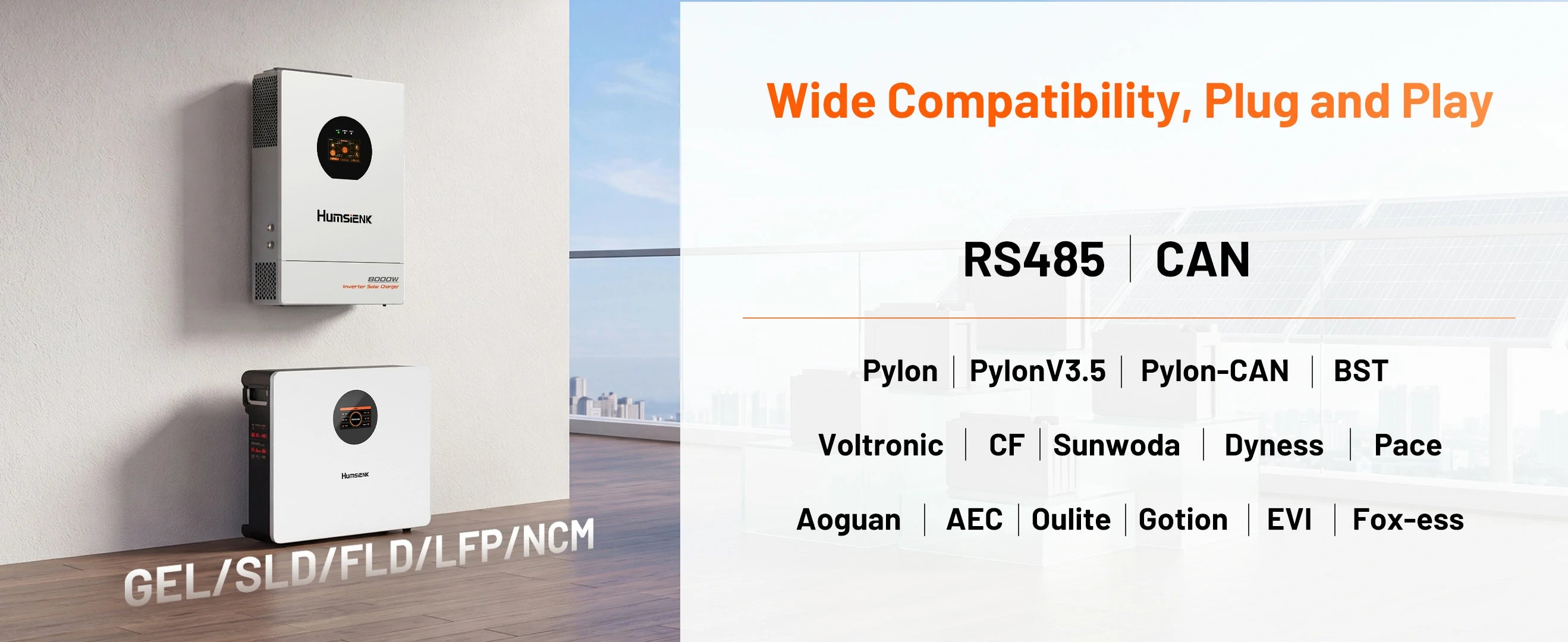

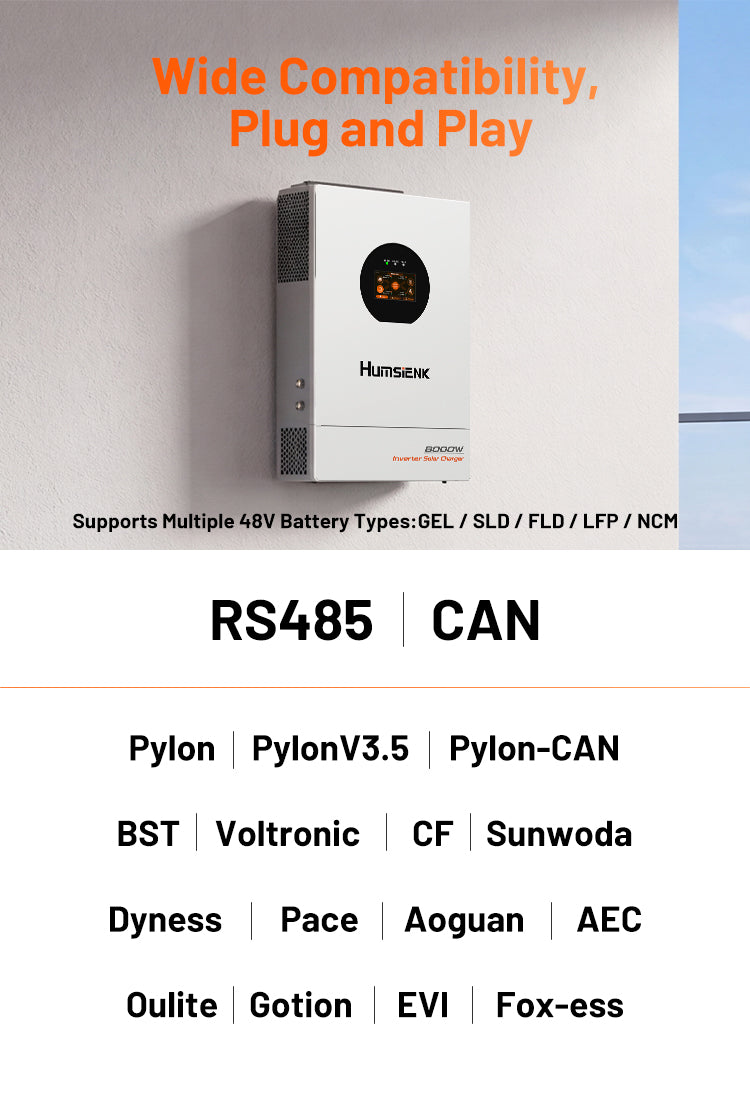

Universal Battery Compatibility – RS485/CAN with Leading BMS Protocols

The inverter supports RS485 and CAN communication, making it compatible with major lithium battery brands including Pylontech (Pylon, Pylon‑CAN, V3.5), Voltronic, CF, Sunwoda, Dyness, Pace, Aoguan, AEC, Oulite, Gotion, EVI, and Fox‑ess. It also works with GEL, AGM, flooded lead‑acid (FLD), and NCM batteries, ensuring plug‑and‑play integration with virtually any 48V battery system.
Humsienk inverter compatible with Pylontech Dyness Fox-ESS and many lithium batteries via RS485 CAN

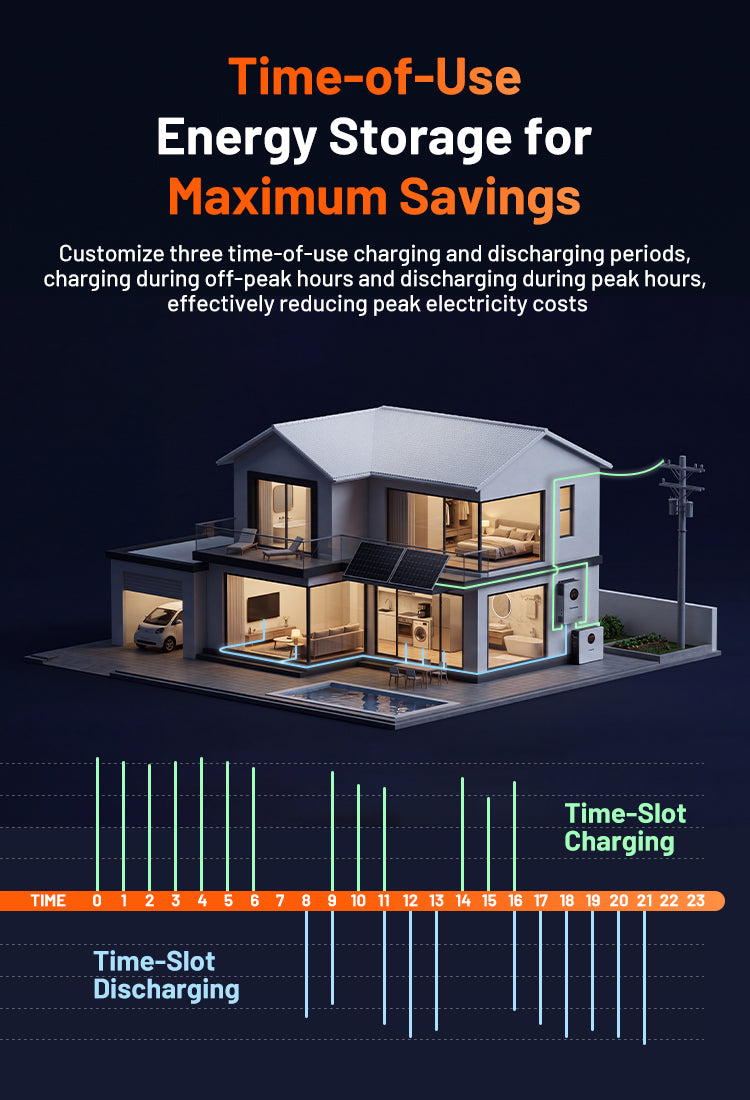

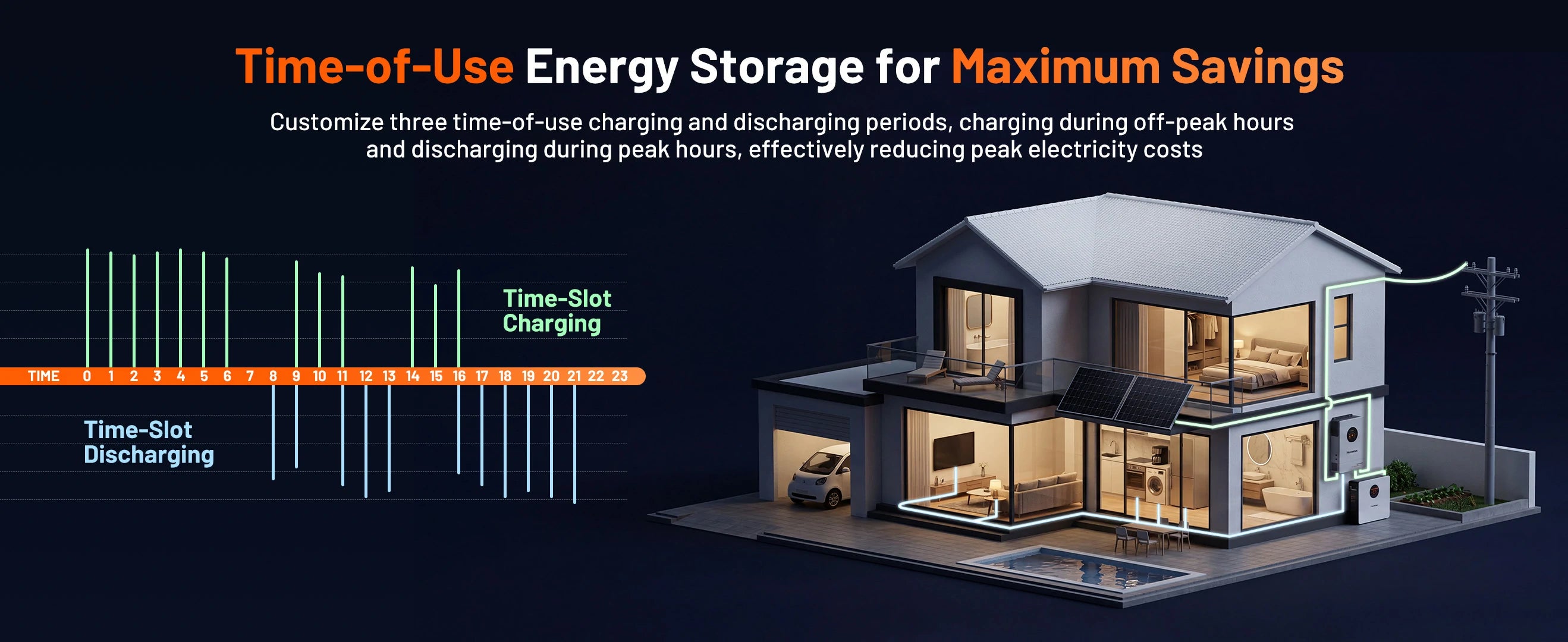

Time‑of‑Use Scheduling – Charge Off‑Peak, Discharge During Peak Hours

Program up to three customizable time‑of‑use periods to automate charging and discharging. The inverter charges the battery during low‑tariff off‑peak hours and discharges stored energy during expensive peak‑rate periods, effectively reducing your electricity bills. This intelligent TOU function makes the Humsienk inverter an ideal partner for grid‑tied solar systems with battery storage.
Humsienk time-of-use energy storage schedules 3 periods to charge off-peak and discharge peak hours

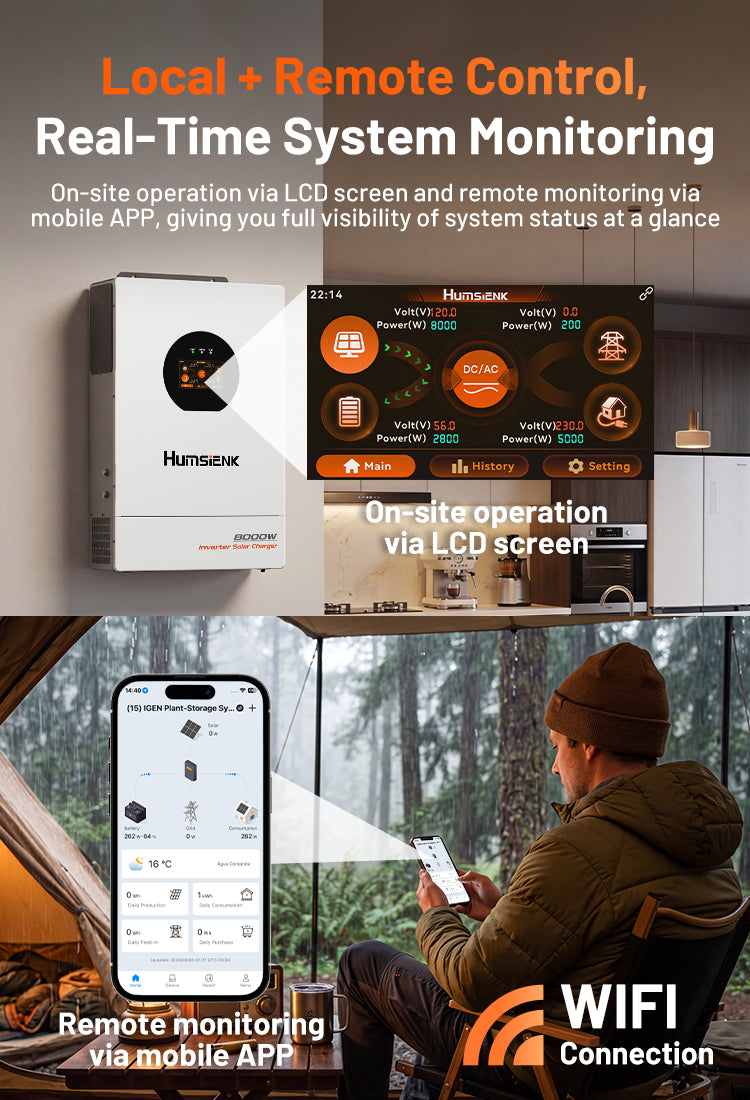

Real‑Time Monitoring – LCD Screen + Mobile App with WiFi Connectivity

Monitor and control your system anytime, anywhere. The built‑in LCD screen allows convenient on‑site operation and status checking, while the integrated WiFi module enables remote access via the Humsienk mobile app. You can view real‑time data, adjust settings, and receive alerts – giving you complete peace of mind whether you are at home or away.
Humsienk inverter monitoring via LCD screen and mobile app with WiFi for real-time system status

Power Freedom – Perfect for RVs, Homes, Off‑Grid, Garages & Storage Systems

Designed for ultimate flexibility, the Humsienk 48V 8000W solar hybrid inverter excels in a wide range of scenarios: recreational vehicles, residential solar systems, off‑grid cabins, garage workshops, and battery storage systems. Wherever you need reliable, high‑efficiency power conversion – and freedom from the grid – this inverter delivers.
How many units can be paralleled, and what is the maximum total power output?
Which battery types are compatible, and does the inverter support popular BMS communication protocols?
What are the MPPT specifications, and what is the maximum solar panel input power?
How can I monitor and control the inverter, and is remote access available?
What charging and output modes are available, and how can the time‑of‑use (TOU) function help save on electricity bills?
