| Dimension(in) | 19x6.7x9.49 | Weight(lbs) | 44 |
| Nominal Voltage | 25.6V | Nominal Capacity | 100Ah |
| Standard/Maximum Continuous Charging |
20A/100A | Max Continues Discharge Current |
100A |

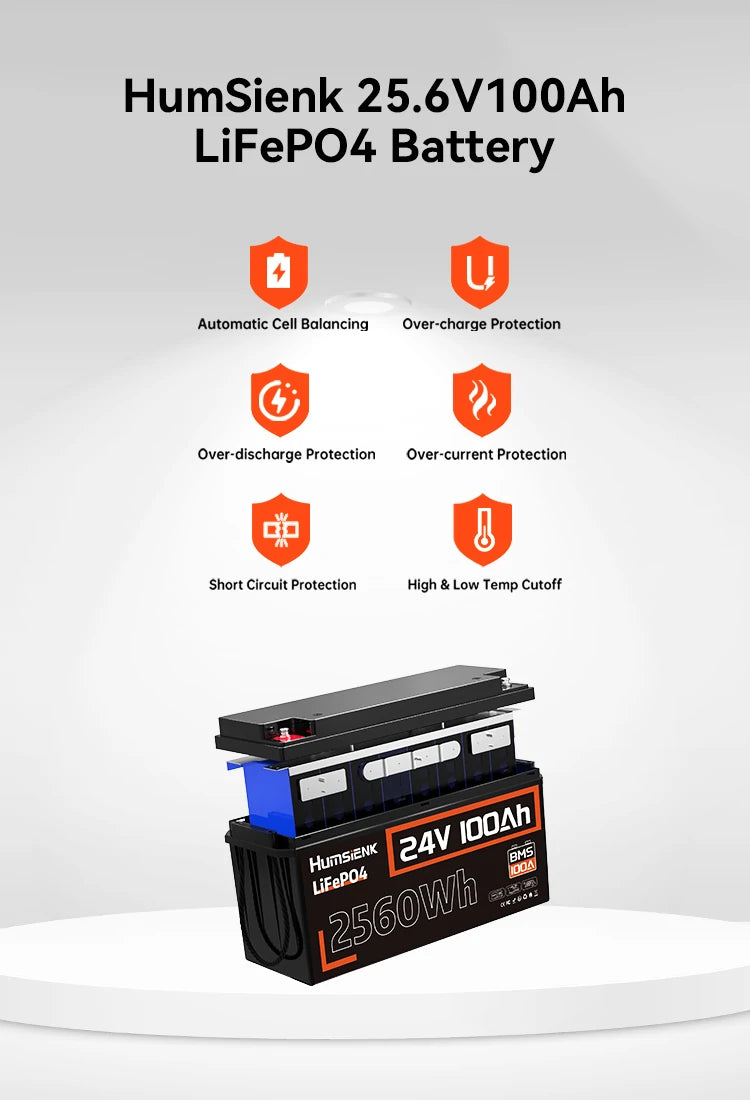

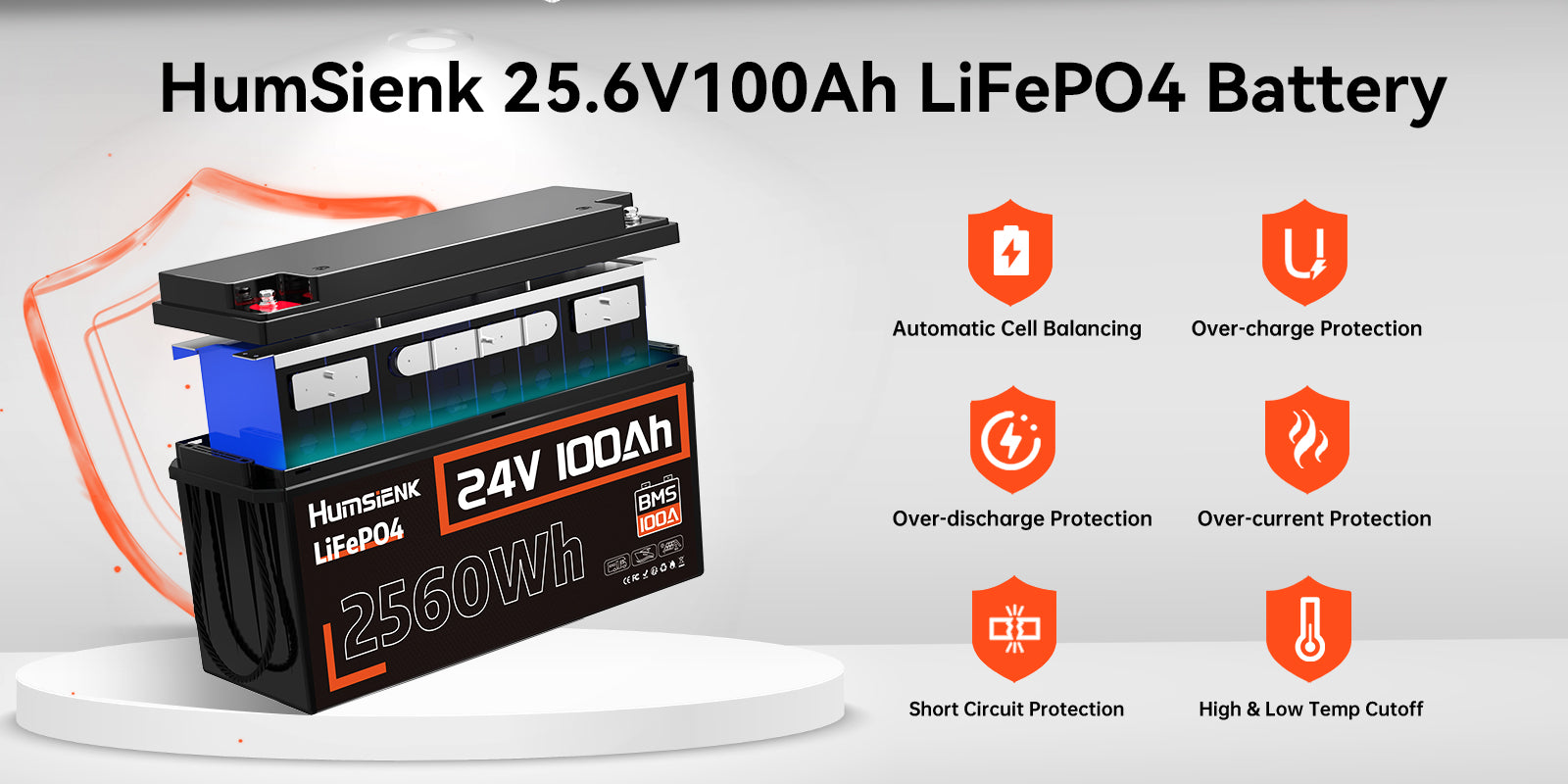

| Over-current Discharge Protection |
300±50A | Over-current Charge Protection |
130±20A |
| Over-charge Voltage Protection |
29.2±0.2V | Over-charge Voltage Protection Release |
29.2±0.2V |
| Over-discharge Voltage Protection |
18.4±0.24V | Over-discharge Voltage Protection Release |
21.6±0.24V |
| Short Circuit Current Protection |
Support | Release Condition | Cut Load |
| Charging High Temperature Protection |
149±41°F | Discharge High Temperature Protection |
158±41°F |
| High Temperature Protection Release Condition |
Drop by 50±41°F | Charging Low Temperature Protection |
32±41°F |
| Discharge Low Temperature Protection |
-4±41°F | Temperature Protection Release Condition |
Rise by 50±41°F |
| Cycle Life | 6000@DOD80% | Self Discharge Rate | ≤3%/Month |

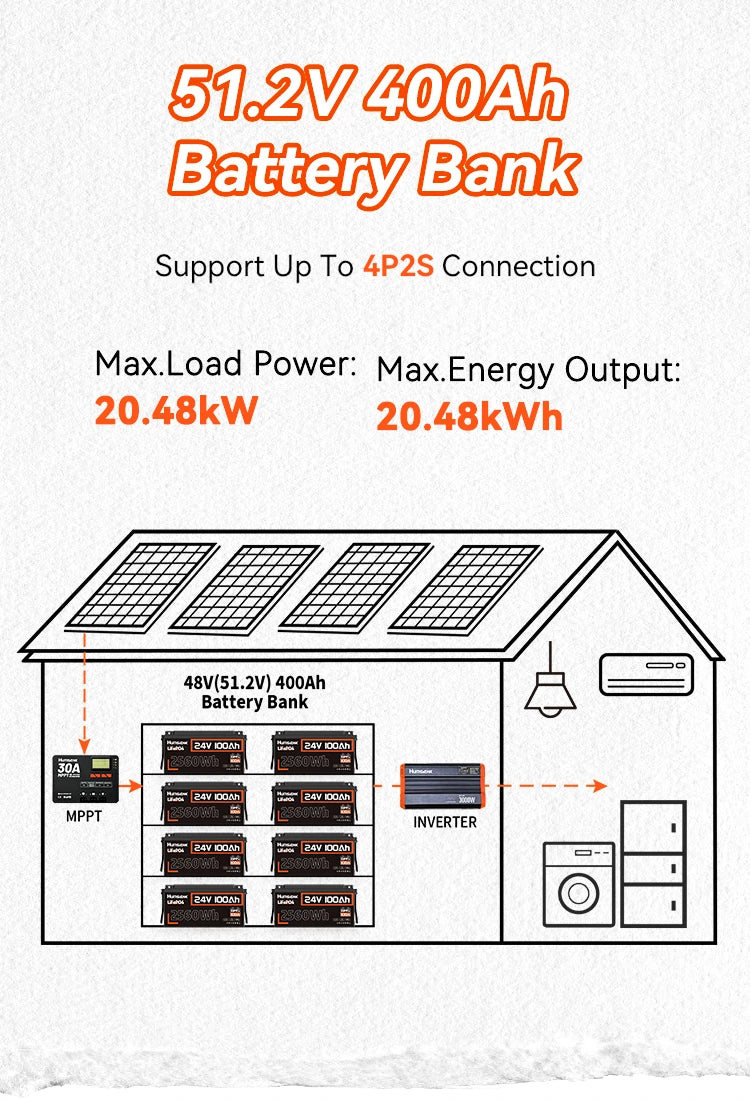

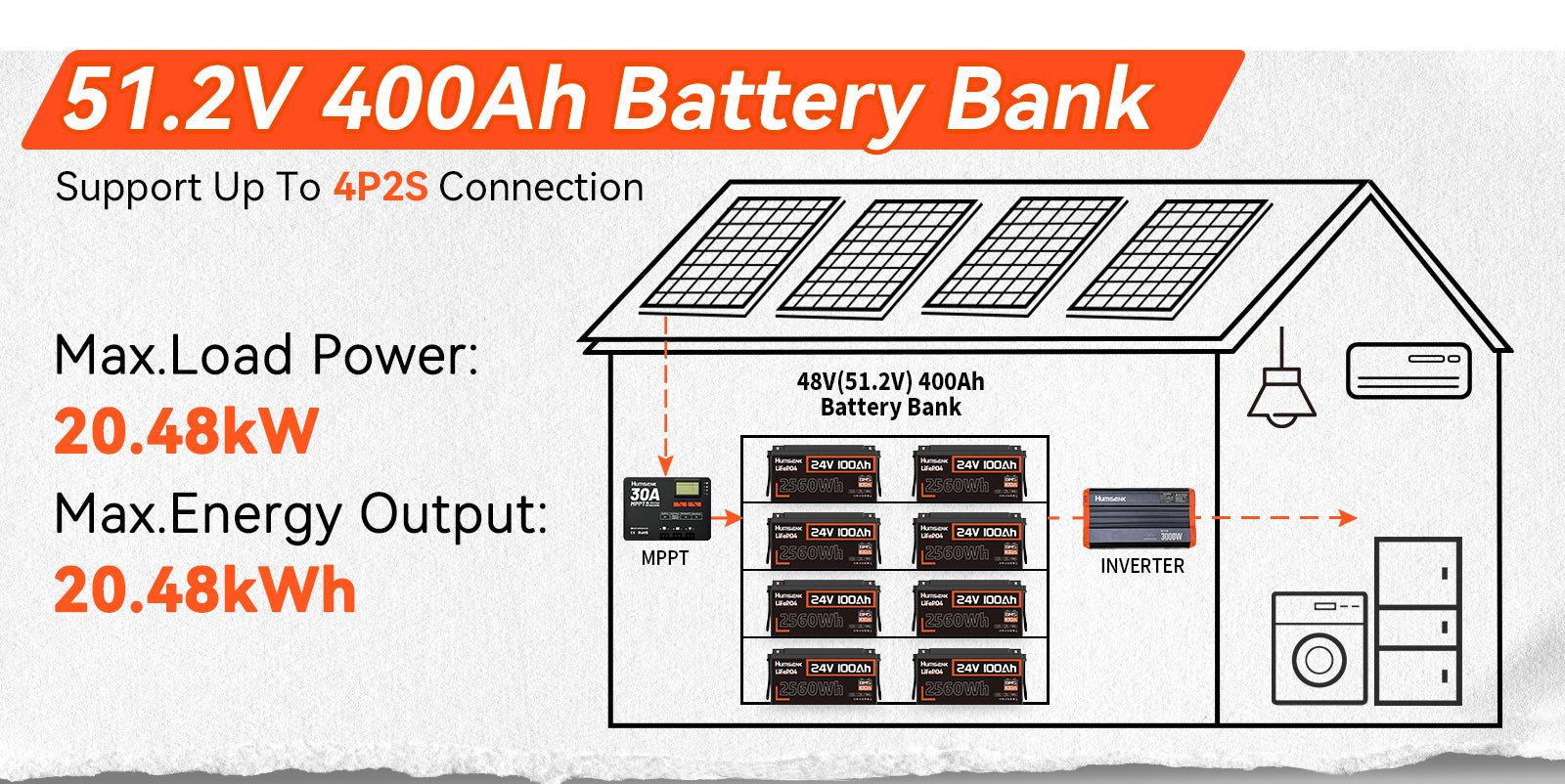

| Series & Paralle Connection | Max. 2S4P | Case Material | ABS+PC/UL94-V0 |
| Battery Pack Certifications | IEC62133/RoHS/CE/FCC/UN38.3/Class9 | Cell Certifications | UL1642/UL2580/UN38.3 |
