Humsienk 12kW 48V Hybrid Inverter + 300Ah/314Ah LiFePO4 Battery – Off-Grid Solar Storage Bundle

Name: Humsienk 12kW 48V Hybrid Inverter + 300Ah/314Ah LiFePO4 Battery – Off-Grid Solar Storage Bundle
Rating: 4.73 (477 reviews)

~~$3,999.99 USD~~ $3,299.99 USD SAVE $700.00 USD

Hurry! Only Left in Stock.

Inverter Tech Specs
Battery Tech Specs

Inverter Tech Specs

统一自适应表格

AC mode

Parameter	Value
Rated input voltage	120(L1/N, L2/N)/240Vac(L1/L2)
Permitted parallel number	1~6
Input phase voltage range	(85Vac~140Vac)±2%
Frequency	50Hz/60Hz (Auto detection)
Frequency Range	47±0.3Hz~55±0.3Hz(50Hz);57±0.3Hz~65±0.3Hz(60Hz)
Overload/short circuit protection	Circuit breaker
Maximum efficiency of municipal electricity charging	>95%
Conversion time (bypass and inverter)	10ms (typical)
AC reverse protection	Yes
Maximum bypass phase overload current	2pole, 60A/60A(L1/L2)

Inverter mode

Parameter	Value
Output voltage waveform	Pure sine wave
Rated output power (VA)	Split phase:12000W; Single phase:7200W (limited by the wiring terminals)
Rated output power (W)	Split phase:12000W; Single phase:7200W (limited by the wiring terminals)
Power factor	1
Rated output voltage (Vac)	120Vac (L1/N, L2/N)/240Vac(L1/L2)
Output voltage error	±5%
Output frequency range (Hz)	50Hz±0.3Hz/60Hz±0.3Hz
Maximum efficiency of inverter output	>92%
Overload protection	(105% < load < 110%) ±5%: report error and turn off the output after 5 minutes; (110% < load < 125%) ±5%: report error and turn off the output after 10 seconds; Load > 125% ±5%: report error and turn off the output after 5 seconds;
Peak power	Split phase: 15000VA; Split phase: 10800VA
Loaded motor capability	5HP
Output short circuit protection	Can protect, after continuous short circuit for 1 second
Bypass circuit breaker phase specification	2pole, 63A/63A(L1/L2)
Rated battery input voltage	51.2V (Minimum starting voltage 44V)
Battery voltage range	40.0Vdc~58.6Vdc±0.6Vdc (Undervoltage alarm/shutdown voltage/overvoltage alarm /overvoltage recovery... settable on LCD screen)
Power saving mode self-consumption	Load per phase is null or less than 25W enter power-saving mode

AC charging

Parameter	Value
Battery type	Lead acid and lithium battery
Maximum charge current (can be set)	120A
Charge current error	±5Adc
Charge voltage range	40~58.6Vdc
Short circuit protection	Circuit breaker or blown fuse
Circuit breaker phase specifications	2pole, 60A/60A(L1/L2)

PV charging

Parameter	Value
Number of MPPT groups	2
Maximum PV open circuit voltage	500Vdc
PV operating voltage range	90Vdc~485Vdc
MPPT voltage range	90Vdc~450Vdc
Battery voltage range	40~58.6Vdc
Maximum PV input power	6000W+6000W
Maximum PV input current	22A+22A
PV charge current (can be set)	220A
Charging short circuit protection	Blown fuse
Wiring protection	Reverse polarity protection

Hybrid charging Max charger current specifications (AC charger+PV charger)

Parameter	Value
Max charger current (can be set)	0~220A

Certified & specifications

Parameter	Value
EMC certification level	FCC part15, CLASS B
Operating temperature range	14°F to 131°F(>113°F derating)/-10°C to 55°C(>45°C derating)
Storage temperature range	-4°F~140°F / -25°C~60°C
Humidity range	5% to 95% (Conformal coating protection)
Noise	≤60dB
Heat dissipation	Forced air cooling, variable speed of fan
Communication interface	USB/RS485(WiFi/GPRS)/Dry node control
Size (LWD)	620×450×132(mm) / 24.41×17.72×5.20(inch)
Weight	23.5kg±3% / 51.81lb±3%

Battery Tech Specs

Humsienk | 48V LiFePO4 Battery Series – Specifications

🔋 Humsienk 48V LiFePO₄ Series

Premium deep-cycle storage | Grade A+ / high-quality cells | Smart BMS & high efficiency

Specification	48V 300Ah	48V 314Ah
Battery Cells	A+	A+
Shell Type	Metal	Metal
Terminal	Quick Connect + M8	Quick Connect
Size / in (L×W×H)	35.75 x 24.41 x 8.58	35.04 x 24.41 x 10.00
Weight	260.15 lbs ±3%	294.32±1.10 lb
Nominal Voltage	51.2V	51.2V
Nominal Capacity	300Ah	314Ah
Energy	15.36kWh	16.07kWh
Cycle Life	6000 @ DOD80%	6000 @ DOD80%
Months Self Discharge	≤3% / Month	≤3% / Month
Efficiency Of Charge	100% @0.2C	100% @0.2C
Efficiency Of Discharge	96~99% @0.5C	96~99% @0.5C
Charge Voltage	56.8-58.4V	56.8-58.4V
Charge Mode	CC/CV	CC/CV
Charge Recommended Current	≤60A	≤62.8A
Max. Continuous Charge Current	200A	200A
Discharge Recommended Current	150A	157A
Max. Continuous Discharge Current	200A	200A
Discharge Cut-Off Voltage	40V	40V
Charge Temperature	32°F~131°F 0°C~55°C	35.6°F~122°F 2°C~50°C
Discharge Temperature	-4°F~140°F -20°C~60°C	-4°F~149°F -20°C~65°C
Storage Temperature	32°F~113°F 0°C~45°C	-4°F~113°F -20°C~45°C
Ingress Protection Rating	IP54	IP54

Humsienk 12kw inverter 3-in-1 Teardown | Split-Phase Game Changer?

EDC Addiction explores the internals of this 12KW, three-in-one inverter, detailing its component layout and build quality. The demonstration includes installation guidance, hardware connectivity, and an overview of the monitoring app features for managing power inputs and settings.

5 stars: 368 (77%)
4 stars: 94 (20%)
3 stars: 11 (2%)
2 stars: 3 (1%)
1 star: 1 (0%)

This product has no reviews of its own. The merchant grouped it with related products, so the reviews shown are from across that group.

These batteries ARE GREAT!

These batteries ARE GREAT! I purchased 2 of them, ran them in parallel in our camper. We went on a 4 day trip with 6 people in our camper. We out the batteries to the test. Water pump, all the lights you make it we ran it. At the end of our trip the batteries were at 95%! Holy crap for real! The Bluetooth feature is amazing as well. I checked the batteries often just cause and man am I impressed! Great batteries and features!

Can you please call me at [****] I need

Can you please call me at [****] I need to buy a charger for the batteries I bought from your company what kind of charger I have to buy and is there’s a charger works on 12 volt

Been great so far! I want to get another one.

Been great so far! I want to get another one.

Awesome battery. 110% recommend

After a slight issue with the first battery HumsiENK got me a new one shipped right away. With just a couple e mails this company wasted no time getting me up and going. Great costumer service and what an awesome product. This 150ah battery has transformed my icon 6L into a long range machine. We use the cart more now than we ever have. Really helped in the hilly terrain. Came home with 4% battery left and the cart was performing like it was still fully charged. (Not that we make a habit out of fully depleting the charge).

Great Plugged it into my system right off the truck powering the inverter in minutes

Great
Plugged it into my system right off the truck powering the inverter in minutes.
Thank you all.

This seems to be a very Good Battery

This seems to be a very Good Battery.
I have had very cloudy skies since I installed the
battery. But seems to charge faster then the other two batteries beside it.
It has been working Flawlessly since it was connected to the system ten days ago.
I am Happy with its performance at this time.

Finally got a chance to use our rv and came away happy with the battery we install this year. It is and does what was promised Bluetooth work great and does everything I need. I received and charged the battery a month before using it and it stayed fully charged.

Been working great

Been working great. I have 2 and plan on getting 2 more

I have two of these batteries and they work perfectly

I have two of these batteries and they work perfectly. The only issue I have had is with shipping. Both batteries arrived damaged, one was damaged much more then the other. The company was quick to offer a discount in return for keeping the batteries.

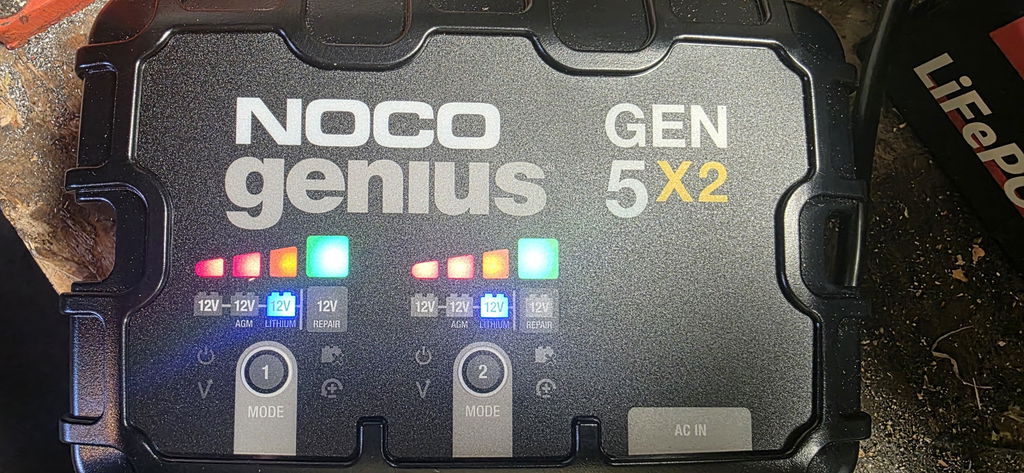

Replaced 2 deep cycle batteries with this LifePo4 324MH bluetooth battery for our GeoPro trailer and it worked really great. We did buy a battery charger to get it to 100% as it came in at 57%. Once fully charged it powered our RV for the long weekend no problem and full recharged with our solar panel each day. It also worked well to charge our laptop in the RV with the inverter and didn't deplete the battery very much. The app works well. The only downside is you need to be near the battery for the blue tooth connection to the app to work and it seems to disconnect easily. Not a huge deal. Overall pleased. Will see how it works for longer boondocks stays.

Great

Been working great

High quality and great service

I a. Impressed with these batteries. Great quality. And the company is amazing. Customer support is responsive and accommodating. Highly recommend. I will build out my entire battery bank with these.

Great product and full of energy
I am happy with this performance
Great fishing day
Jacques Lamoureux

Humsienk is a very good company

Humsienk is a very good company. I found the quality of these batteries to be very good. I reached out to them for some information and received answers to all of my questions. This is a company that can be trusted.

It’s more than I expected a good quality product and a great price

Awesome batteries

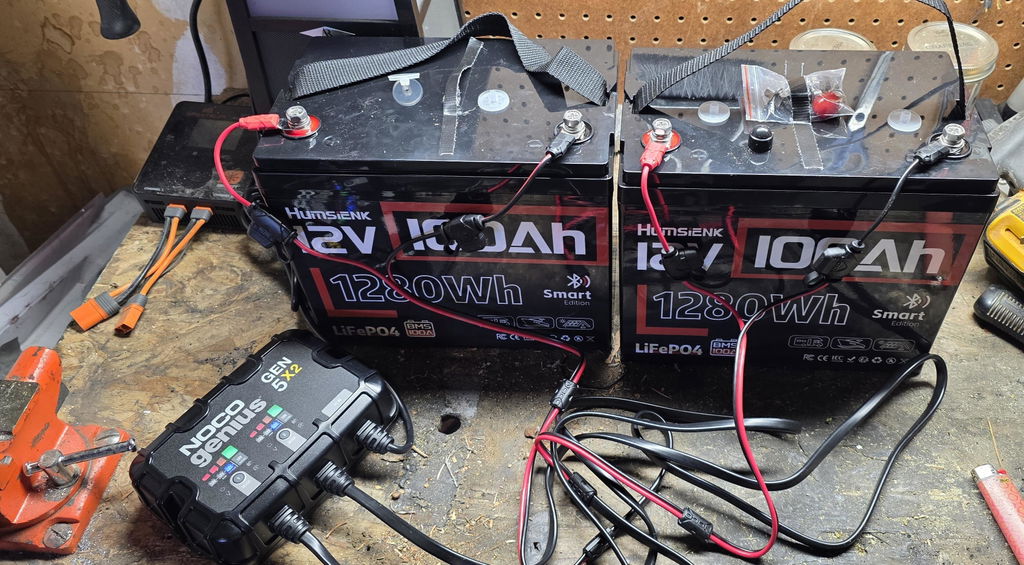

I’ve had 2 of these running for a couple of months on a12 volt solar system and they work great from 24/7 refrigerator to coffee pot vacuum cleaner and any other appliance we’ve plugged in

I can't tell you how happy I am with these batteries. They came well balanced out of the box, but I still connected them in parallel for a couple days to get the Voltage as tight and consistent as possible before installation. I used them in a small ebike car and they work perfectly. Humsienk is creating high quality batteries at an affordable price - and I hear their customer service is good too. Humsienk is seriously positioning themselves as a leader in the industry. If I need batteries again, I'll definitely be buying from them.

New purchase

New purchase, so I cannot rate longevity. It’s exactly as advertised. Fast delivery. Really like the Bluetooth app.
