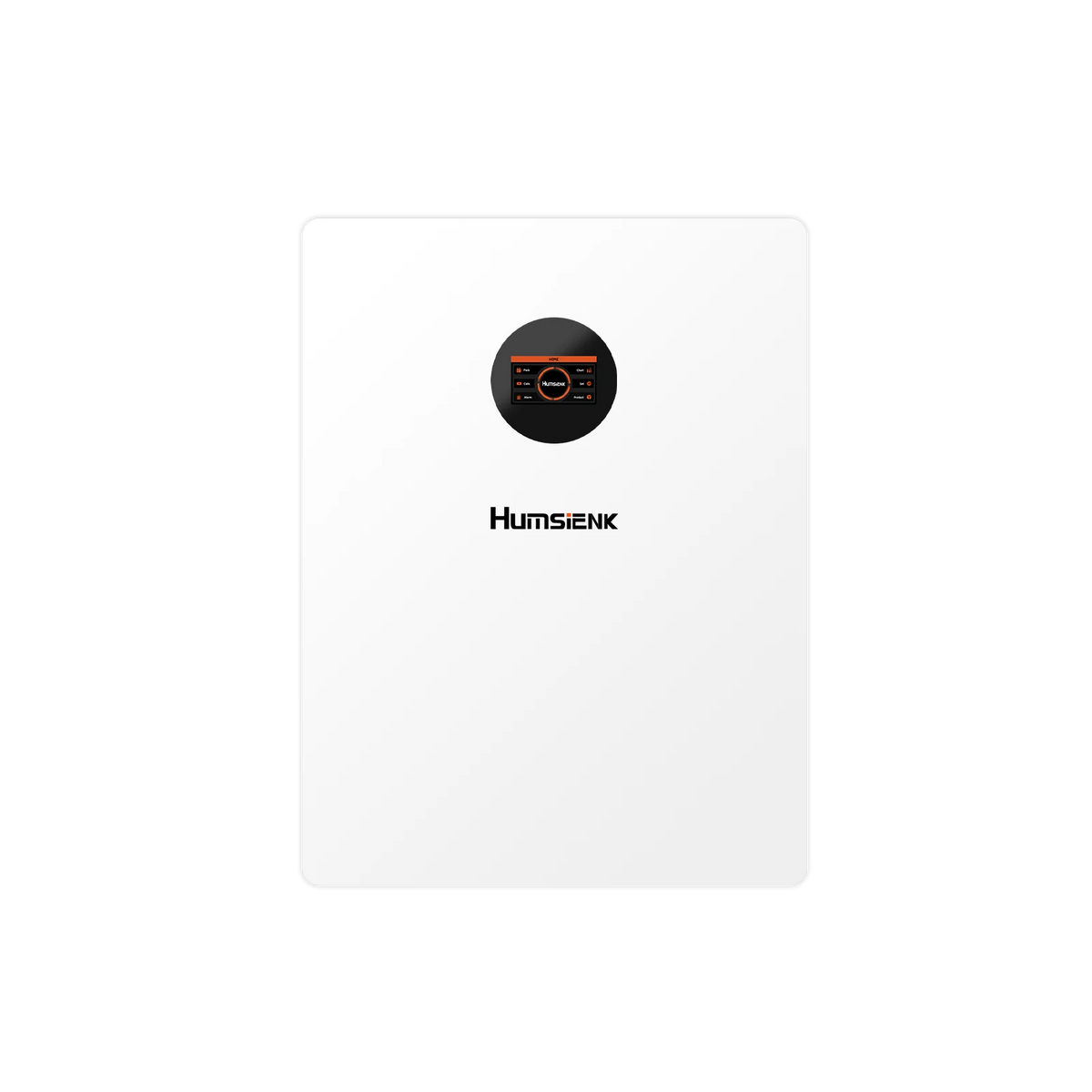

【🚚LTL】Humsienk 48V 314Ah 16.07kWh Floor-standing Bluetooth LiFePO4 Battery with Active Balancing & LCD Touchscreen
【🚚LTL】Humsienk 48V 314Ah 16.07kWh Floor-standing Bluetooth LiFePO4 Battery with Active Balancing & LCD Touchscreen
【🚚LTL】Humsienk 48V 314Ah 16.07kWh Floor-standing Bluetooth LiFePO4 Battery with Active Balancing & LCD Touchscreen
【🚚LTL】Humsienk 48V 314Ah 16.07kWh Floor-standing Bluetooth LiFePO4 Battery with Active Balancing & LCD Touchscreen
【🚚LTL】Humsienk 48V 314Ah 16.07kWh Floor-standing Bluetooth LiFePO4 Battery with Active Balancing & LCD Touchscreen
【🚚LTL】Humsienk 48V 314Ah 16.07kWh Floor-standing Bluetooth LiFePO4 Battery with Active Balancing & LCD Touchscreen
【🚚LTL】Humsienk 48V 314Ah 16.07kWh Floor-standing Bluetooth LiFePO4 Battery with Active Balancing & LCD Touchscreen
White power station with Humsenk branding and a smartphone displaying app interface on a white background

【🚚LTL】Humsienk 48V 314Ah 16.07kWh Floor-standing Bluetooth LiFePO4 Battery with Active Balancing & LCD Touchscreen

$2,999.99 USD $2,299.99 USD SAVE $700.00 USD

⚠️ Due to exchange rates and raw material costs, the selling price of lithium batteries will continue to rise.

Option: 48V 314Ah Floor-standing (16.07kWh)

48V 314Ah Floor-standing (16.07kWh)
48V 400Ah Floor-standing (20.48kWh)
Tech Specs
Humsienk | 48V LiFePO4 Battery Series – Specifications

🔋 Humsienk 48V LiFePO₄ Series

Premium deep-cycle storage | Grade A+ / BYD cells | Smart BMS & high efficiency

Specification 48V 100Ah 48V 300Ah 48V 314Ah 48V 400Ah
Battery Cells A+ A+ A+ BYD
Shell Type Metal Metal Metal Metal
Terminal Quick Connect Quick Connect + M8 Quick Connect M8
Size / in (L×W×H) 21.65 x 19.09 x 7.28 35.75 x 24.41 x 8.58 35.04 x 24.41 x 10.00 49.26 x 7.88 x 29.17
Weight 110.23±1.10 lb 260.15 lbs ±3% 294.32±1.10 lb 410.06 lb ±5%
Nominal Voltage51.2V51.2V51.2V51.2V
Nominal Capacity100Ah300Ah314Ah400Ah
Energy5.12kWh15.36kWh16.07kWh20.48kWh
Cycle Life6000 @ DOD80%6000 @ DOD80%6000 @ DOD80%6000 @ DOD80%
Months Self Discharge≤3% / Month≤3% / Month≤3% / Month≤3% / Month
Efficiency Of Charge100% @0.2C100% @0.2C100% @0.2C100% @0.2C
Efficiency Of Discharge96~99% @0.5C96~99% @0.5C96~99% @0.5C96~99% @0.5C
Charge Voltage56.8-58.4V56.8-58.4V56.8-58.4V56.8-58.4V
Charge ModeCC/CVCC/CVCC/CVCC/CV
Charge Recommended Current≤20A≤60A≤62.8A≤80A
Max. Continuous Charge Current100A200A200A200A
Discharge Recommended Current50A150A157A200A
Max. Continuous Discharge Current100A200A200A200A
Discharge Cut-Off Voltage40V40V40V40V
Charge Temperature 35.6°F~122°F
2°C~50°C		 32°F~131°F
0°C~55°C		 35.6°F~122°F
2°C~50°C		 32°F~131°F
0°C~55°C
Discharge Temperature -4°F~149°F
-20°C~65°C		 -4°F~140°F
-20°C~60°C		 -4°F~149°F
-20°C~65°C		 -4°F~140°F
-20°C~60°C
Storage Temperature -4°F~113°F
-20°C~45°C		 32°F~113°F
0°C~45°C		 -4°F~113°F
-20°C~45°C		 32°F~113°F
0°C~45°C
Ingress Protection Rating IP54 IP54 IP54 IP20
⚡ Humsienk LiFePO₄ technology | Integrated BMS, high discharge & cycle life | Ideal for solar, off-grid, RV & backup power
Downloads

Tech Specifications

User Manual

About Shipping
  • To improve service transparency, please note the updated process for truck shipments (LTL orders):
  • After a large battery order is confirmed, we will send you an email to verify that you are ready for shipment. Once we receive your confirmation, we will request shipping quotes from our logistics partners on the same day.
  • On the following day, we will confirm the final freight cost and arrange a truck pickup. The order will then be shipped as scheduled.
  • The entire process typically takes about 48 hours, starting from the time we receive your confirmation.
Humsienk_48V_314Ah_Wall_Mount_LiFePO4_Battery
【🚚LTL】Humsienk 48V 314Ah 16.07kWh Floor-standing Bluetooth LiFePO4 Battery with Active Balancing ...
$2,299.99
$2,999.99
Humsienk_48V_314Ah_Wall_Mount_LiFePO4_Battery
【🚚LTL】Humsienk 48V 314Ah 16.07kWh Floor-standing Bluetooth LiFePO4 Battery with Active Balancing ...
$2,299.99
$2,999.99
Humsienk_48V_314Ah_Wall_Mount_LiFePO4_Battery
【🚚LTL】Humsienk 48V 314Ah 16.07kWh Floor-standing Bluetooth LiFePO4 Battery with Active Balancing ...
$2,299.99
$2,999.99
Humsienk_48V_314Ah_Wall_Mount_LiFePO4_Battery
【🚚LTL】Humsienk 48V 314Ah 16.07kWh Floor-standing Bluetooth LiFePO4 Battery with Active Balancing ...
$2,299.99
$2,999.99
Humsienk_48V_314Ah_Wall_Mount_LiFePO4_Battery
【🚚LTL】Humsienk 48V 314Ah 16.07kWh Floor-standing Bluetooth LiFePO4 Battery with Active Balancing ...
$2,299.99
$2,999.99
Humsienk_48V_314Ah_Wall_Mount_LiFePO4_Battery
【🚚LTL】Humsienk 48V 314Ah 16.07kWh Floor-standing Bluetooth LiFePO4 Battery with Active Balancing ...
$2,299.99
$2,999.99
Humsienk_48V_314Ah_Wall_Mount_LiFePO4_Battery
【🚚LTL】Humsienk 48V 314Ah 16.07kWh Floor-standing Bluetooth LiFePO4 Battery with Active Balancing ...
$2,299.99
$2,999.99
Humsienk_48V_314Ah_Wall_Mount_LiFePO4_Battery
【🚚LTL】Humsienk 48V 314Ah 16.07kWh Floor-standing Bluetooth LiFePO4 Battery with Active Balancing ...
$2,299.99
$2,999.99
Humsienk_48V_314Ah_Wall_Mount_LiFePO4_Battery
【🚚LTL】Humsienk 48V 314Ah 16.07kWh Floor-standing Bluetooth LiFePO4 Battery with Active Balancing ...
$2,299.99
$2,999.99

Understanding Trucking (LTL) Delivery Progress and Tracking

1. Why is trucking delivery slower?
  • Unlike courier services such as UPS or FedEx, trucking carriers typically need to consolidate full loads or follow fixed route schedules. As a result, pickup and delivery times are less predictable.
  • We work with multiple trucking carriers and must request quotes from several providers before confirming the final carrier – this process takes time.
  • Your order contains high-value batteries. For safety reasons, we also need to reconfirm your shipping instructions and pickup arrangements before dispatching.
2. Why can't trucking tracking be found on 17track?
  • 17track mainly supports international courier and postal services (e.g., UPS, FedEx, USPS, DHL).
  • Trucking shipments use internal carrier systems that do not integrate with 17track. Real-time tracking is generally not available.
  • Updates are typically provided manually by the carrier, often in the form of a pickup confirmation or proof of delivery (POD).
3. Does trucking require an in-person signature?

Yes.When a trucking shipment arrives, the driver will request anin-person signature from the recipient.
This increases security, but please note that if no one is available to sign, additional delivery fees or delays may occur.

4. Will I receive a tracking number for trucking?

Real-time tracking is not available like with couriers.
We can request aProof of Delivery (POD)or status updates from the carrier, but this requires manual effort.

5. Can I contact the trucking company directly for updates?

Generally, no. Trucking carriers typically communicate only with the shipper (us). Please rest assured that we willcontinue to push for updates and keep you informed.

Humsienk_48V_314Ah_Wall_Mount_LiFePO4_Battery_200A_BMS_Bluetooth_Details_8Humsienk_48V_314Ah_Wall_Mount_LiFePO4_Battery_200A_BMS_Bluetooth_M_8
Humsienk_48V_314Ah_Wall_Mount_LiFePO4_Battery_200A_BMS_Bluetooth_Features_2Humsienk_48V_314Ah_Wall_Mount_LiFePO4_Battery_200A_BMS_Bluetooth_Features_M_2
Humsienk_48V_314Ah_Wall_Mount_LiFePO4_Battery_200A_BMS_Bluetooth_Dual_Protection_3Humsienk_48V_314Ah_Wall_Mount_LiFePO4_Battery_200A_BMS_Bluetooth_M_3
Humsienk_48V_314Ah_Wall_Mount_LiFePO4_Battery_200A_BMS_Bluetooth_Touch_Screen_4Humsienk_48V_314Ah_Wall_Mount_LiFePO4_Battery_200A_BMS_Bluetooth_M_4
Humsienk_48V_314Ah_Wall_Mount_LiFePO4_Battery_200A_BMS_Bluetooth_Waterproof_7Humsienk_48V_314Ah_Wall_Mount_LiFePO4_Battery_200A_BMS_Bluetooth_M_7
Humsienk_48V_314Ah_Wall_Mount_LiFePO4_Battery_200A_BMS_Bluetooth_Parral_241kWh_5Humsienk_48V_314Ah_Wall_Mount_LiFePO4_Battery_200A_BMS_Bluetooth_M_5
Humsienk_48V_314Ah_Wall_Mount_LiFePO4_Battery_200A_BMS_Bluetooth_Compatibility_6Humsienk_48V_314Ah_Wall_Mount_LiFePO4_Battery_200A_BMS_Bluetooth_M_6
Humsienk_48V_314Ah_Wall_Mount_LiFePO4_Battery_200A_BMS_Bluetooth_Shipping_10Humsienk_48V_314Ah_Wall_Mount_LiFePO4_Battery_200A_BMS_Bluetooth_M_10
Humsienk_48V_314Ah_Wall_Mount_LiFePO4_Battery_200A_BMS_Bluetooth_Applications_9Humsienk_48V_314Ah_Wall_Mount_LiFePO4_Battery_200A_BMS_Bluetooth_M_9

Frequently Asked Questions

What are the environmental requirements for installing a wall-mounted battery?

To ensure optimal and safe operation, follow these guidelines :

  • Environment: Choose a clean, cool, and well-ventilated area, away from direct sunlight and flammable materials.
  • Ambient Temperature: The ideal operating temperature range is between 0°C and 45°C (32°F - 113°F) for charging. Avoid using the battery in extreme temperatures.
  • Space: Maintain sufficient clearance around the battery as specified in the manual to ensure proper heat dissipation and access for wiring.
  • Wall Strength: Ensure the wall can securely support the weight of the battery.
How do I connect the battery to an inverter?

These 48V batteries are designed to work with inverters rated for 48V battery banks.

 Is communication necessary?

Connecting communication cables (like RS485, CAN, or RS232) between the battery and a compatible inverter allows for "closed-loop" communication. This enables the inverter to receive real-time data from the Battery Management System (BMS) for more precise charging and optimal performance.

How can I maximize the lifespan of my battery?
  • Avoid Extreme Temperatures: High heat accelerates degradation, and charging at temperatures below 0°C (32°F) can cause permanent damage unless the battery has a built-in self-heating function .
  • Use a Compatible Charger: Always use a charger or inverter with charging profiles specifically designed for LiFePO4 batteries.
  • Optimal Storage: If storing the battery for a long period, charge it to 40%-60% state of charge and keep it in a cool, dry place. Check and recharge it every 3-6 months.
  • Regular Use: Periodic full charge/discharge cycles can help the BMS calibrate the state of charge reading for better accuracy.
What are the rules for connecting multiple batteries in parallel?

Most wall-mounted batteries support parallel connection to increase total capacity (e.g., from 5kWh to 15kWh). When paralleling, always use batteries of the same brand, model, and age. Use cables of the same length and gauge for each battery to ensure balanced charging/discharging. Adhere to the manufacturer's limit on the maximum number of parallel units.
