| Mechanical | Shell Type | Metal |

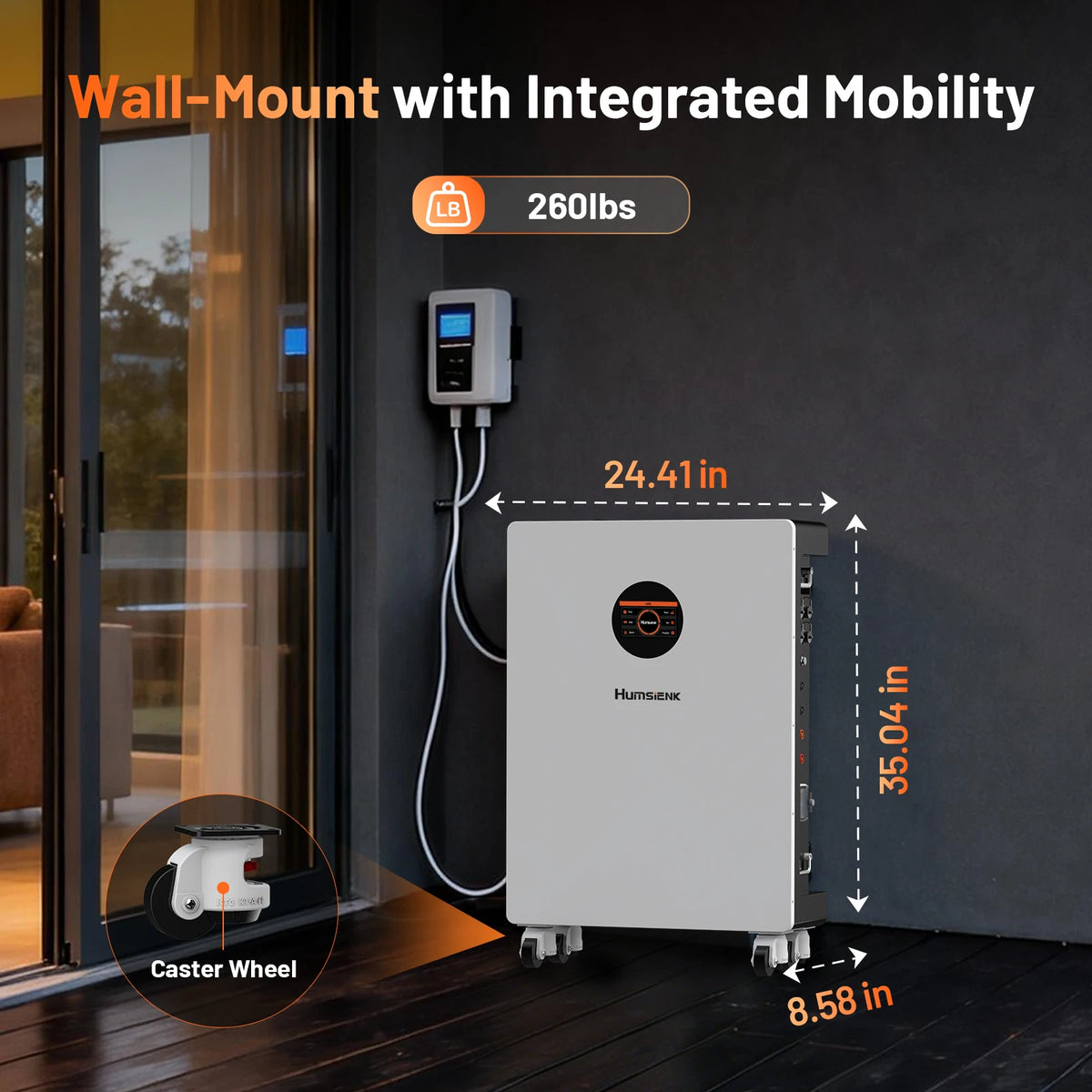

| Size | 908 x 620 x 218 mm / 35.75 x 24.41 x 8.58 in | |
| Weight | 118kg±3% / 260.15lbs±3% | |
| Electrical Characteristics |
Nominal Voltage | 51.2V |
| Nominal Capacity | 300Ah | |

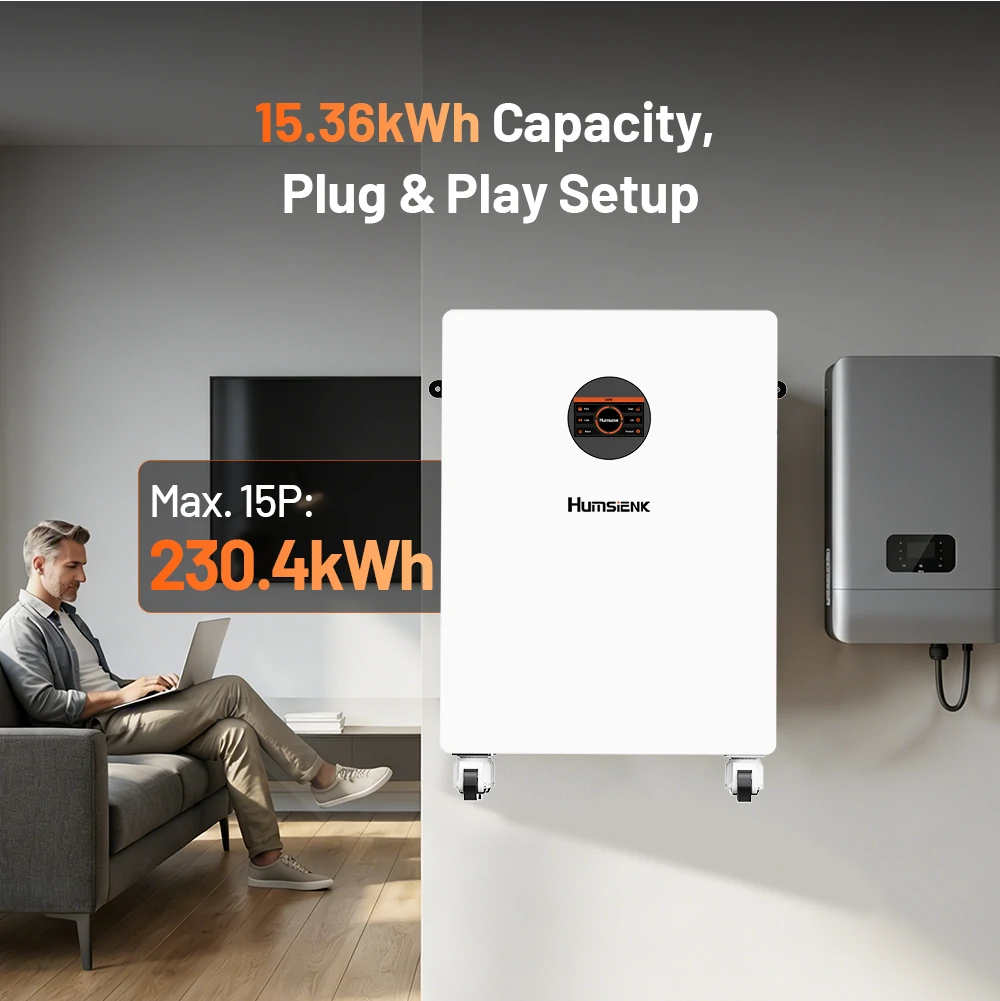

| Energy | 15.36kWh | |
| Terminal | M8 | |

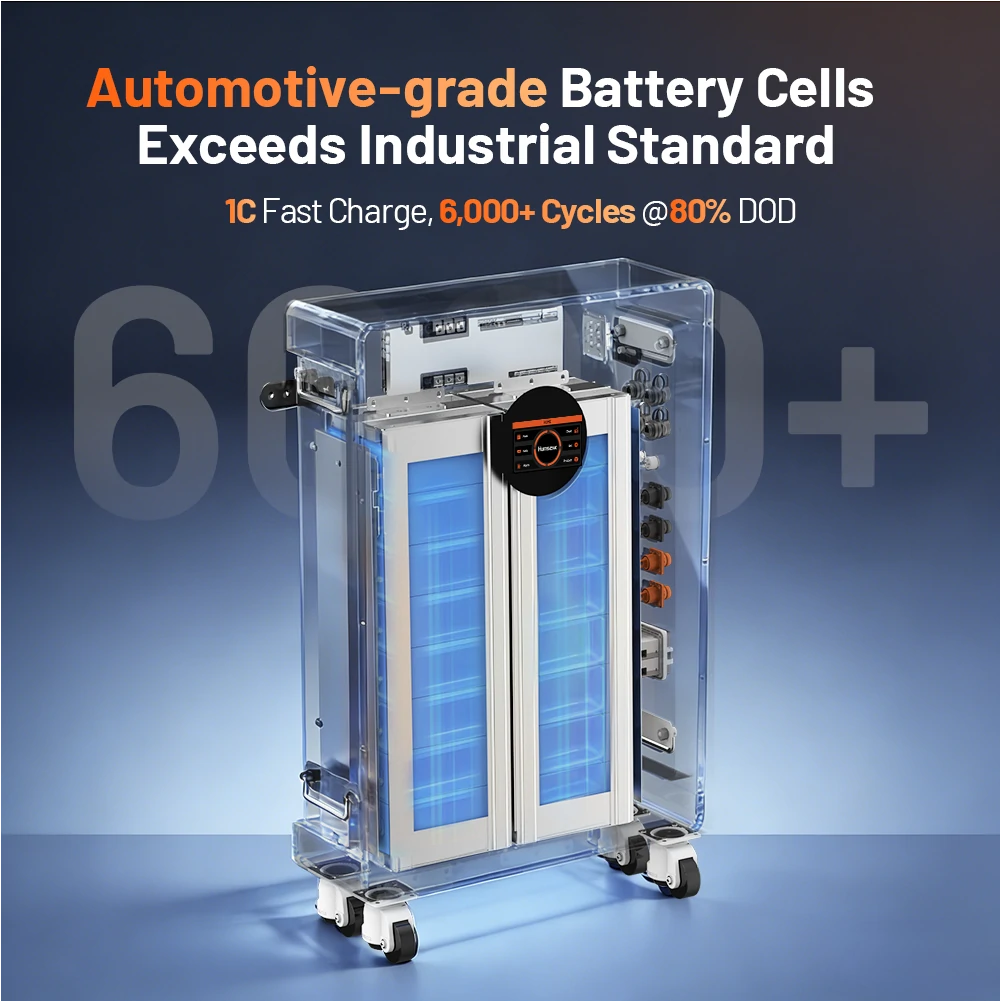

| Cycle Life | 6000@DOD80% | |
| Months Self Discharge | s3%/Month | |
| Efficiency Of Charge | 100%@0.2C | |
| Efficiency Of Discharge | 96~99%@0.5C | |
| Standard Charge | Charge Voltage | 57.6V±0.8V |
| Charge Mode | CC/CV | |
| Charge Recommended Current | 60A | |
| Max. Continuous Charge Current | 200A | |
| Standard Discharge | Discharge Recommended Current | 150A |
| Max. Continuous Discharge Current | 200A | |
| Discharge Cut-Off Voltage | 40V | |
| Environmental | Charge Temperature | 32°F~131°F/0°C~55°C |
| Discharge Temperature | -4°F~140°F/-20°C~60°C | |
| Storage Temperature | 32°F~113°F/0°C~45°C | |
| Ingress Protection Rating | IP54 |
To ensure optimal and safe operation, follow these guidelines :

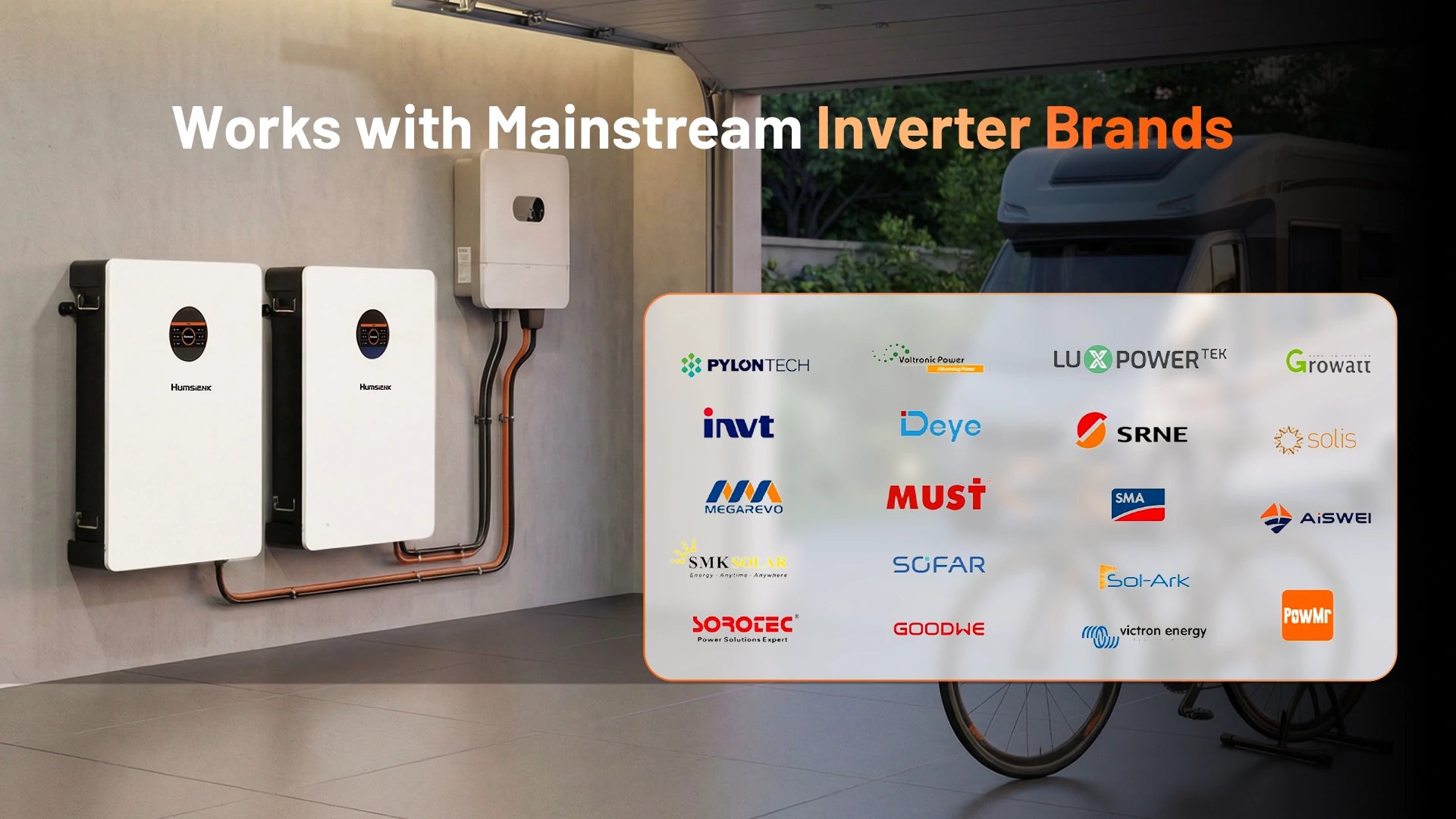

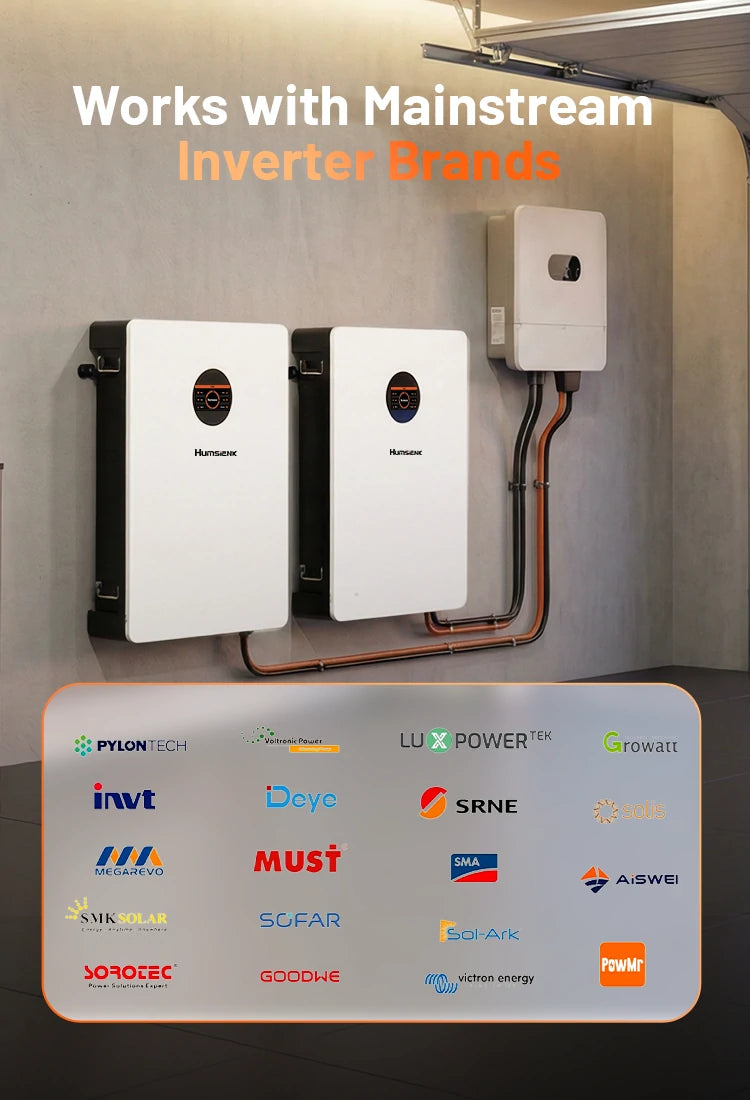

These 48V batteries are designed to work with inverters rated for 48V battery banks.

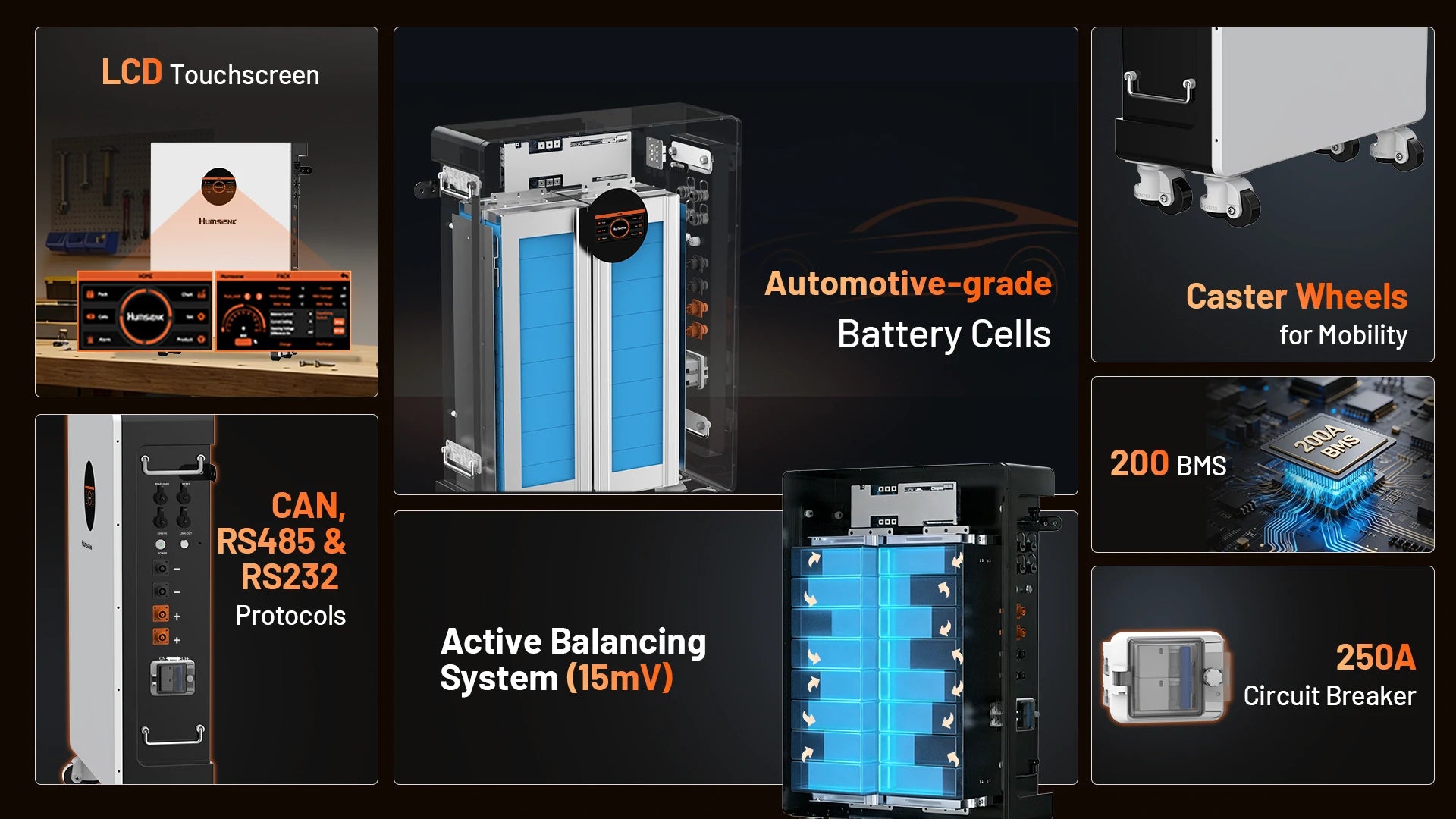

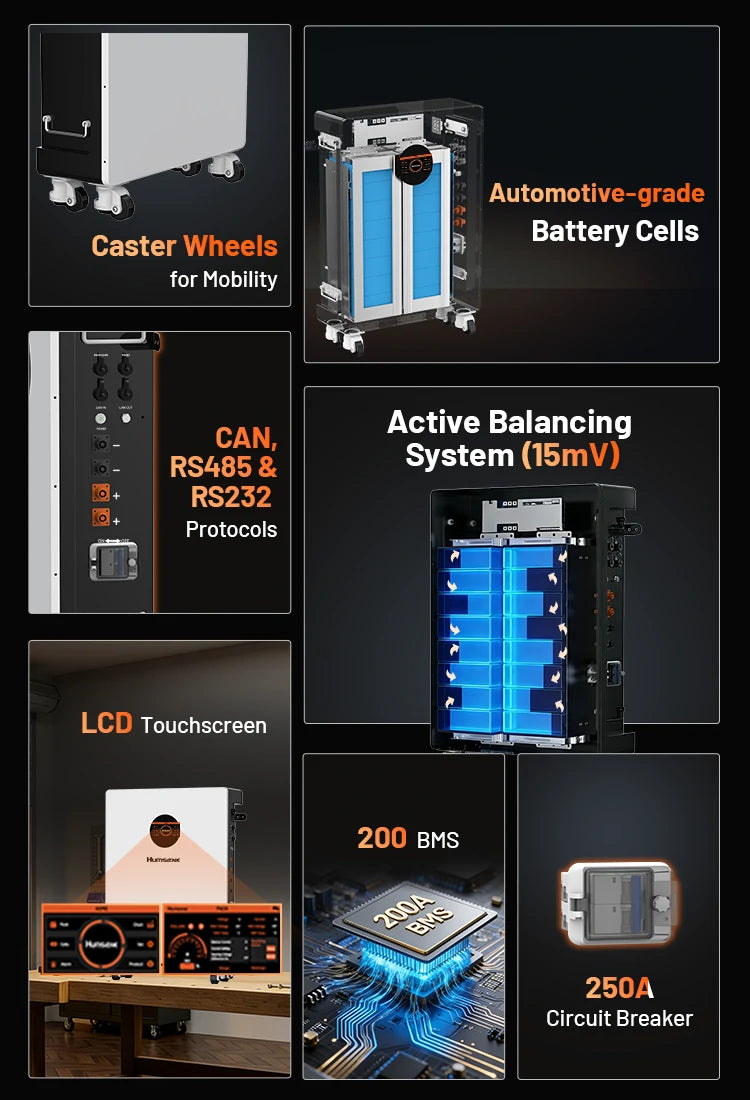

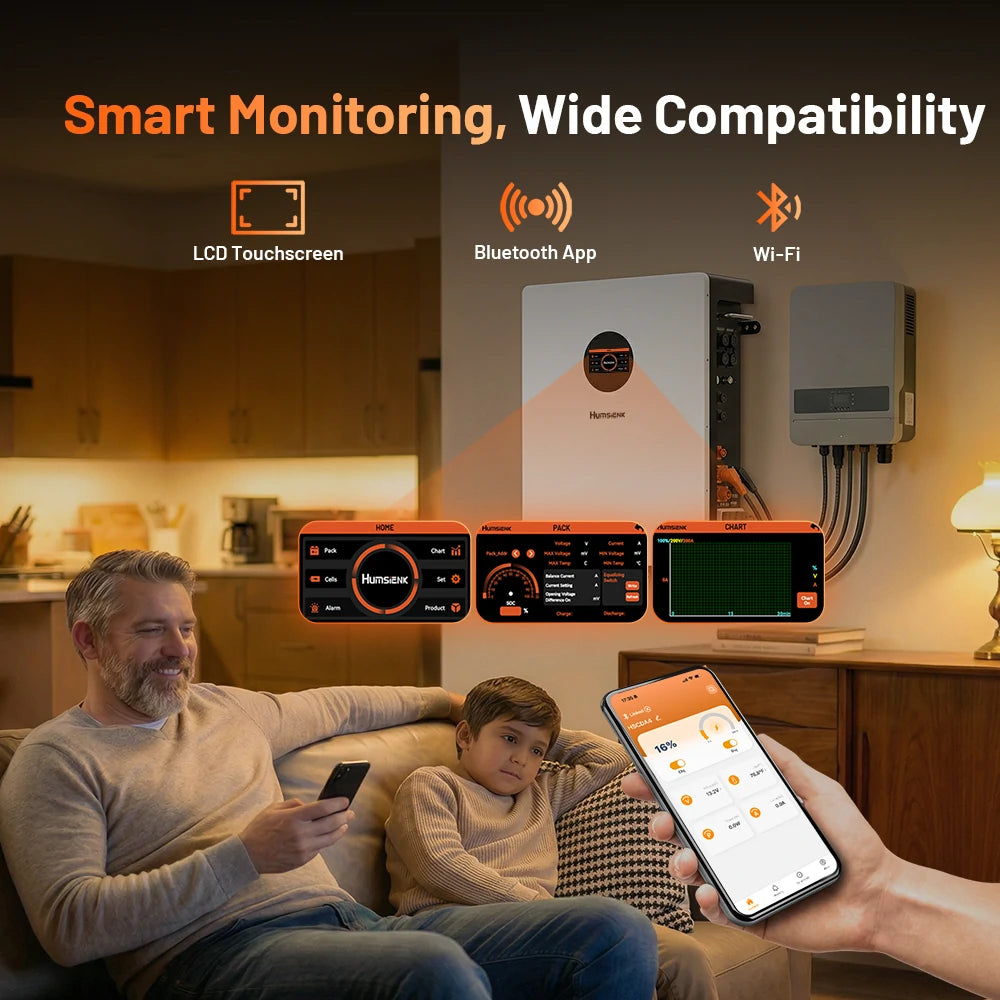

Connecting communication cables (like RS485, CAN, or RS232) between the battery and a compatible inverter allows for "closed-loop" communication. This enables the inverter to receive real-time data from the Battery Management System (BMS) for more precise charging and optimal performance.
Most wall-mounted batteries support parallel connection to increase total capacity (e.g., from 5kWh to 15kWh). When paralleling, always use batteries of the same brand, model, and age. Use cables of the same length and gauge for each battery to ensure balanced charging/discharging. Adhere to the manufacturer's limit on the maximum number of parallel units.
