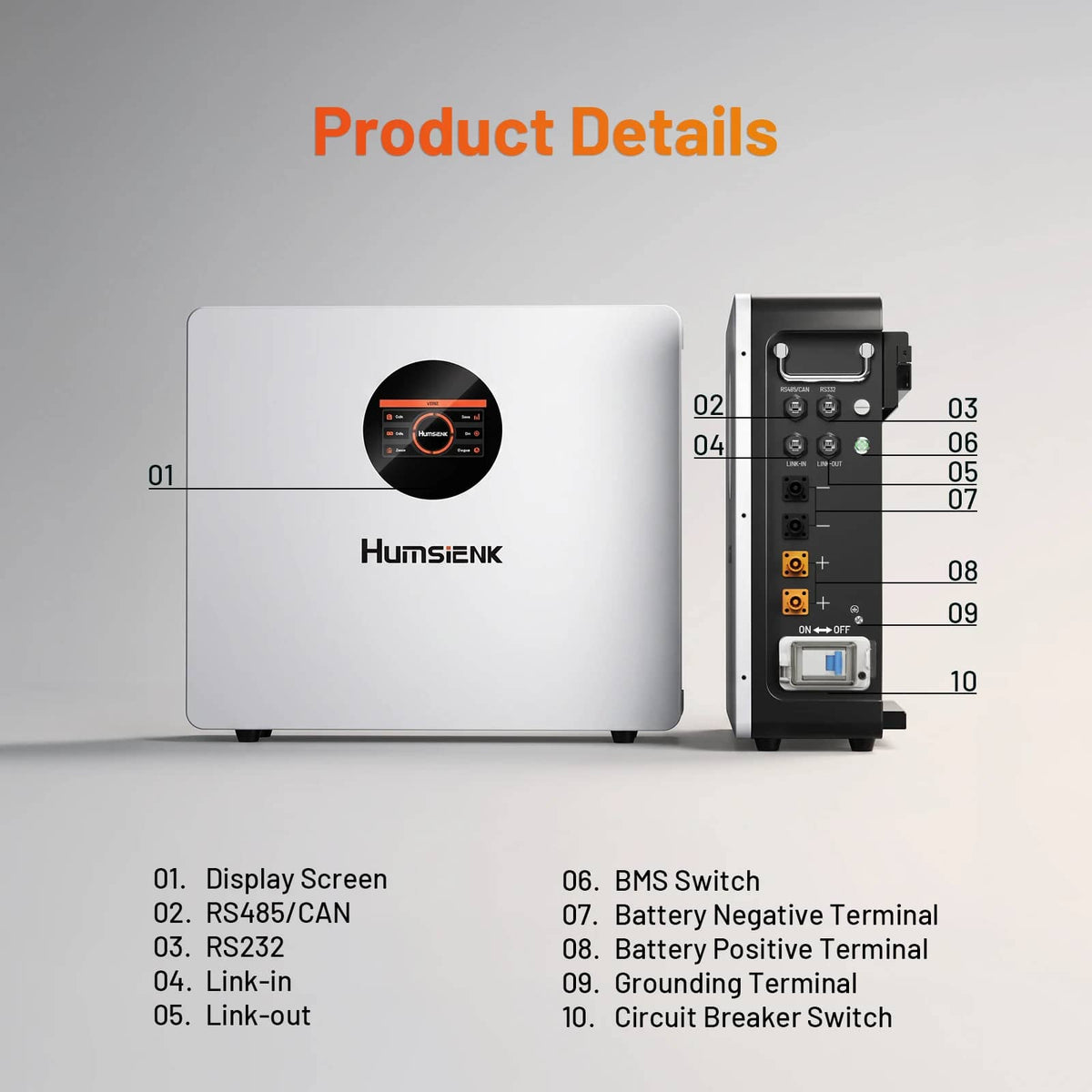

Humsienk_48V_100Ah_Wall_Mount_LiFePO4_Battery_Details
Humsienk_48V_100Ah_Wall_Mount_LiFePO4_Battery_Low_Temp_Protection
Humsienk_48V_100Ah_Wall_Mount_LiFePO4_Battery_Parallel_76.8kWh_System

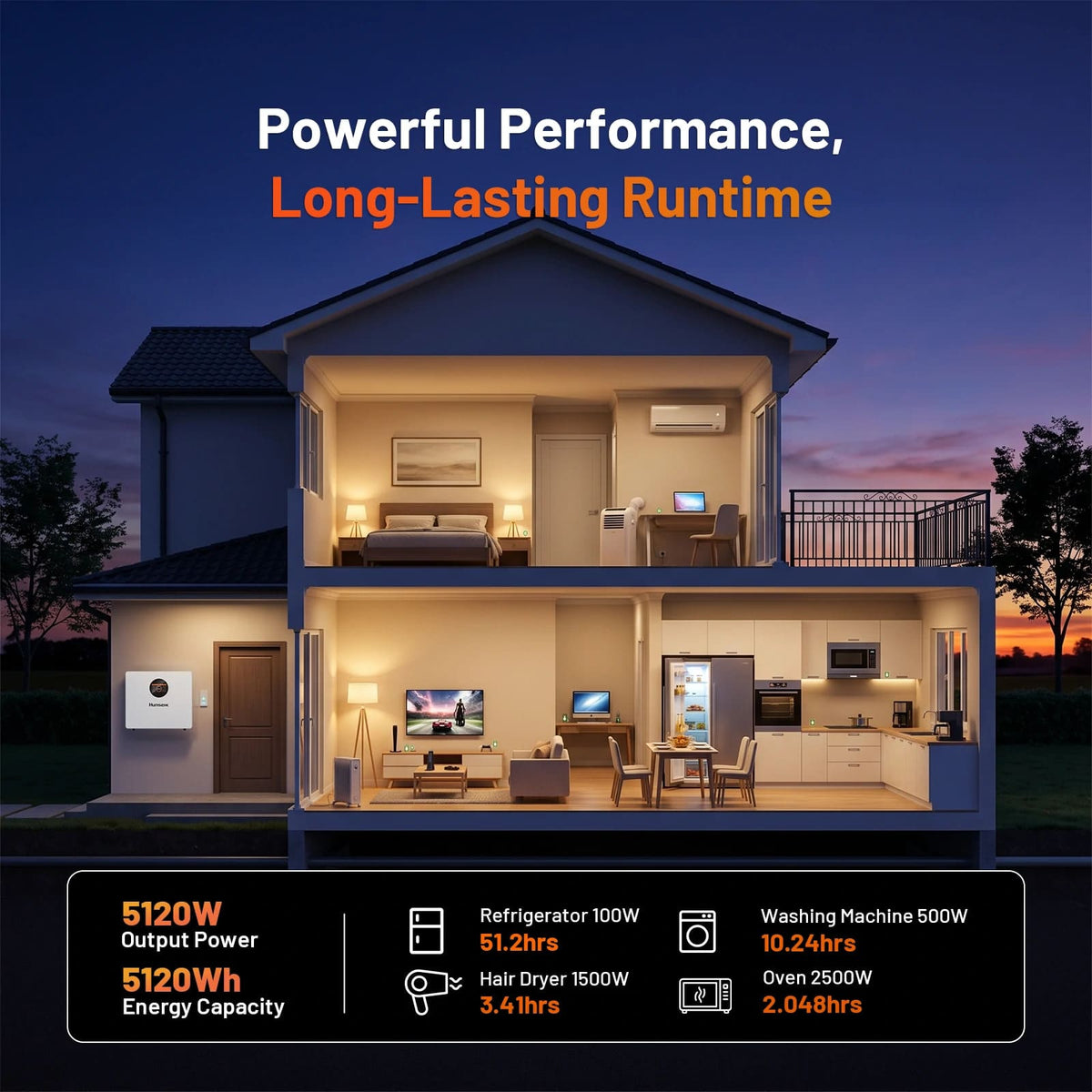

Humsienk_48V_100Ah_Wall_Mount_LiFePO4_Battery_5120Wh_Runtime
Humsienk_48V_100Ah_Wall_Mount_LiFePO4_Battery_Monitor
Humsienk_48V_100Ah_Wall_Mount_LiFePO4_Battery_Application_09

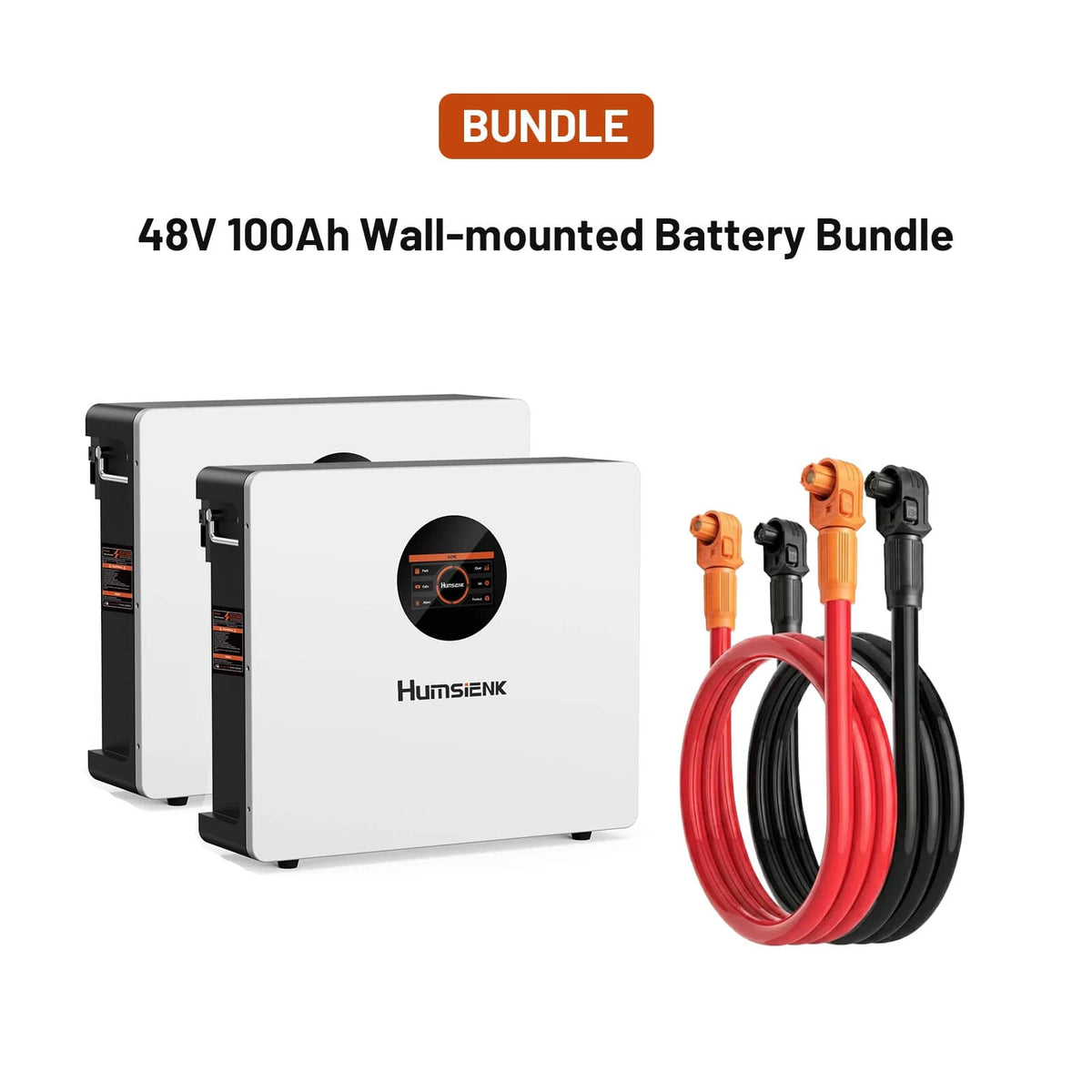

[🔥Free QC Cable] Humsienk 48V 200Ah 10.24kWh Wall-Mounted LiFePO4 Battery Pack with Bluetooth, Active Balancing & LCD Touchscreen for Home Storage Backup or Off-grid

$2,999.99 USD $1,999.99 USD SAVE $1,000.00 USD

Prime Day 7% off Sitewide Ends in

%-D%!D:Day,Days; %-H%!H:hour,hours; %-M%!M:min,mins; %-S%!S:sec,secs;
Tech Specs
Mechanical Shell Type Metal
Size 550 x 485 x 185.5  mm / 21.65 x 19.09 x 7.28 in
Weight 50+0.5kg /110.23+1.10 lb
Electrical
Characteristics		 Nominal Voltage 51.2V
Nominal Capacity 100Ah
Energy 5120Wh
Terminal M8
Cycle Life 6000@DOD80%
Months Self Discharge s3%/Month
Efficiency Of Charge 100%@0.2C
Efficiency Of Discharge 96~99%@0.5C
Standard Charge Charge Voltage 56.8-58.4V
Charge Mode CC/CV
Charge Recommended Current 20A
Max. Continuous Charge Current 100A
Standard Discharge Discharge Recommended Current 50A
Max. Continuous Discharge Current 100A
Discharge Cut-Off Voltage 40V
Environmental Charge Temperature 35.6°F~122°F/2°C~50°C
Discharge Temperature -4°F~149°F/-20°C~65°C
Storage Temperature -4°F~113°F/-20°C~45°C
Ingress Protection Rating IP54
Downloads

User Manual

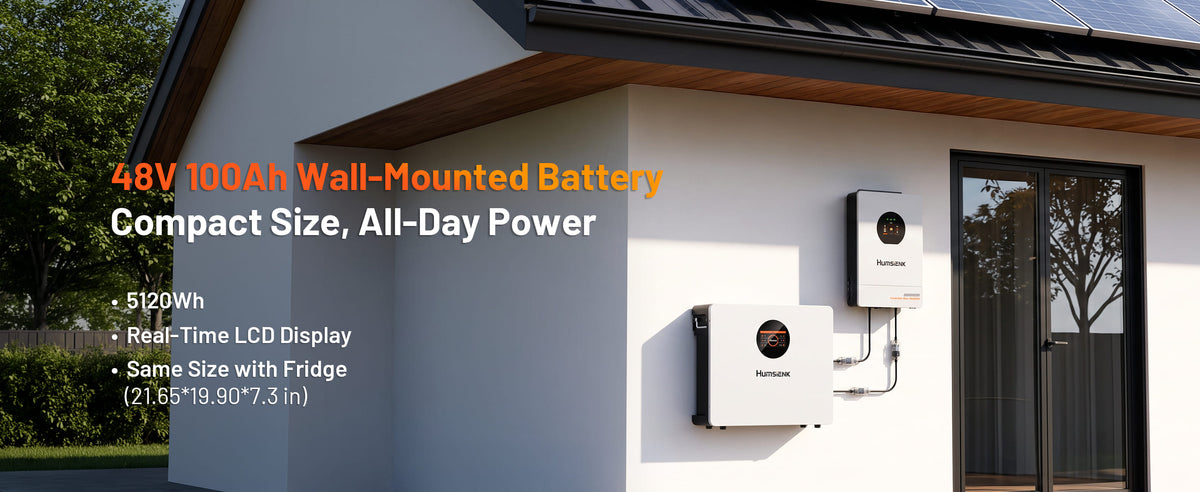

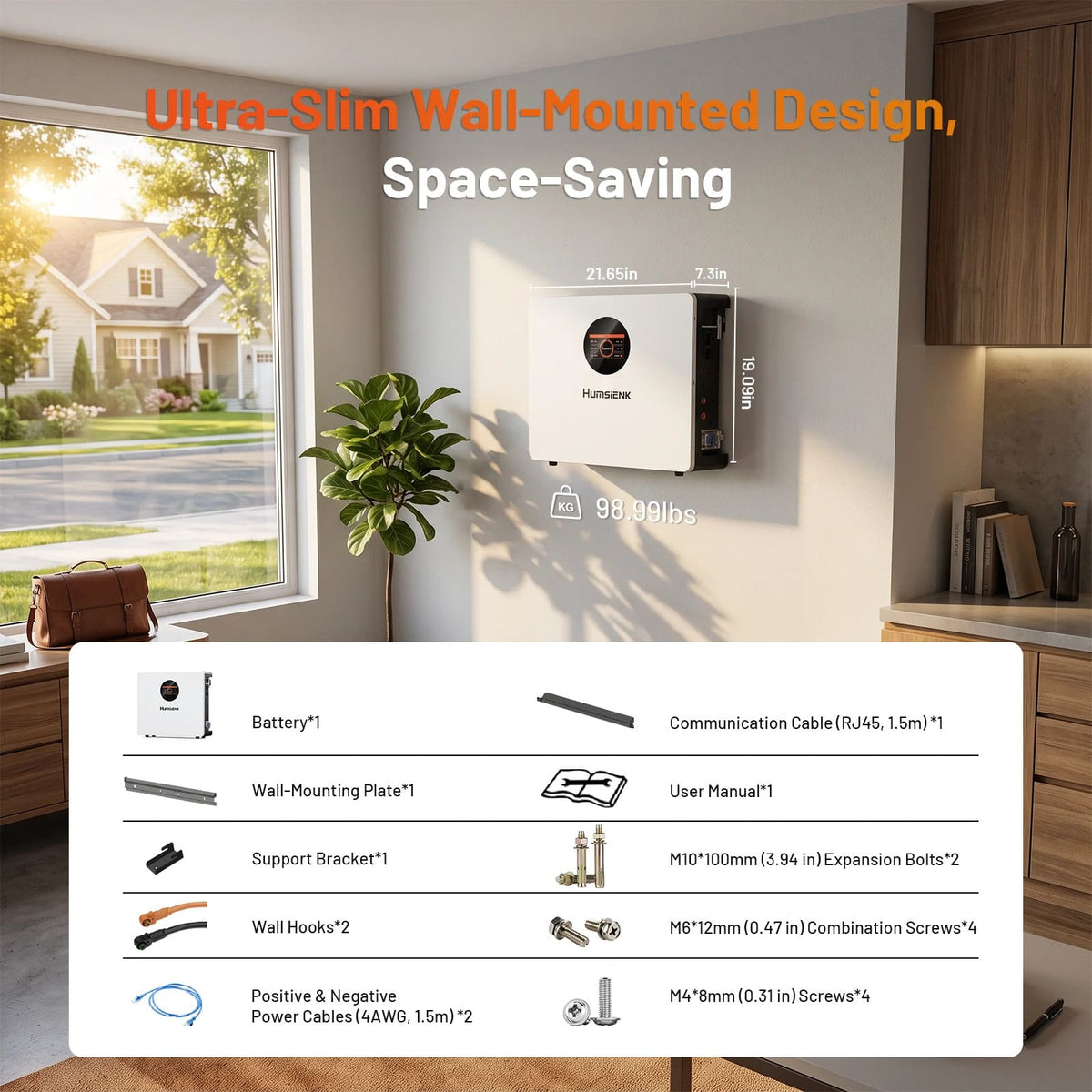

Space-Saving 48V 100Ah Wall-Mounted LiFePO₄ Battery – Sleek Power for Modern Homes

Maximize your energy without sacrificing floor space. Humsienk 48V 100Ah wall-mounted lithium battery measures just 19.09 x 21.65 x 7.28 inches, mounting flush against any wall for a clean, professional installation. Perfect for home solar backup, off-grid cabins, and peak shaving – this LiFePO₄ powerhouse delivers reliable, silent, and maintenance-free energy storage right where you need it.
HAMSENK 48V 100Ah wall mount LiFePO4 battery 19.09x21.65x7.28 inches for home energy storage, off-grid solar systems, and emergency backup power.PCHAMSENK 48V 100Ah wall mount LiFePO4 battery 19.09x21.65x7.28 inches for home energy storage, off-grid solar systems, and emergency backup power.Mobile

Smart 5.12kW LiFePO₄ Battery with LCD Touchscreen, Bluetooth & 100A BMS – 10‑Year Lifespan

Smart, safe, and built to last. The Humsienk 5.12kW battery features a 100A BMS, 125A circuit breaker, LCD touchscreen, and Bluetooth monitoring. Works from ‑4°F to 140°F and delivers 6000+ cycles for decades of off‑grid or backup power.
Compact Humsienk 5.12kW LiFePO4 battery with Bluetooth, LCD touchscreen, 100A BMS, 125A breaker, operating temperature -4F to 140F, 6000 cycles.PCCompact Humsienk 5.12kW LiFePO4 battery with Bluetooth, LCD touchscreen, 100A BMS, 125A breaker, operating temperature -4F to 140F, 6000 cycles.Mobile

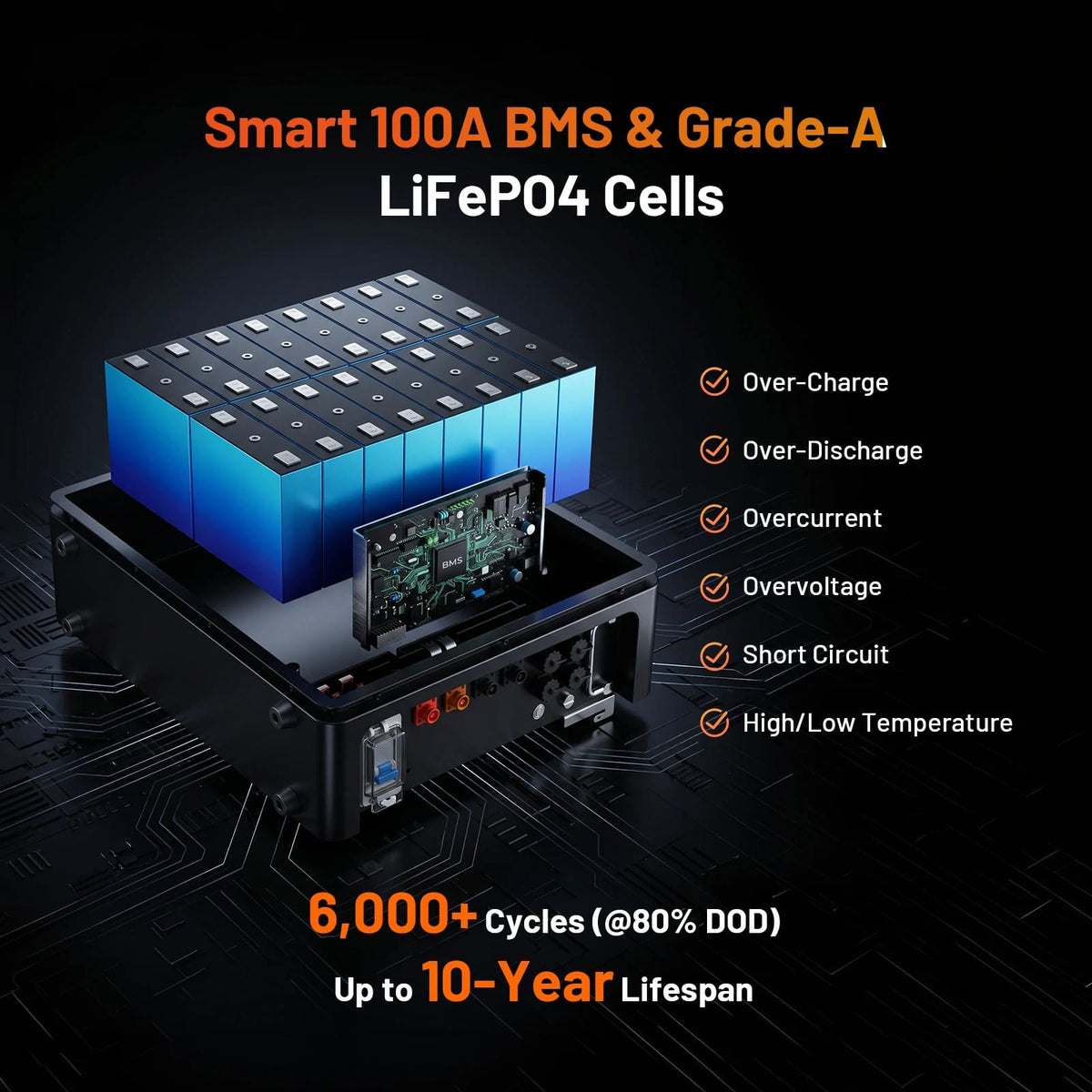

100A BMS + 125A Circuit Breaker – Double Protection for Maximum Battery Safety

Humsienk equips this battery with a two-tier safety architecture: an intelligent 100A BMS that actively monitors every cell, paired with a physical 125A circuit breaker that instantly cuts power in emergencies. Together they deliver comprehensive protection against over‑charge, over‑discharge, over‑current, over‑voltage, short‑circuits, and high/low temperatures.
Double protection battery safety system with 100A BMS and 125A circuit breaker for over-charge, over-discharge, over-current, short-circuit, over-voltage, and temperature protection.PCDouble protection battery safety system with 100A BMS and 125A circuit breaker for over-charge, over-discharge, over-current, short-circuit, over-voltage, and temperature protection.Mobile

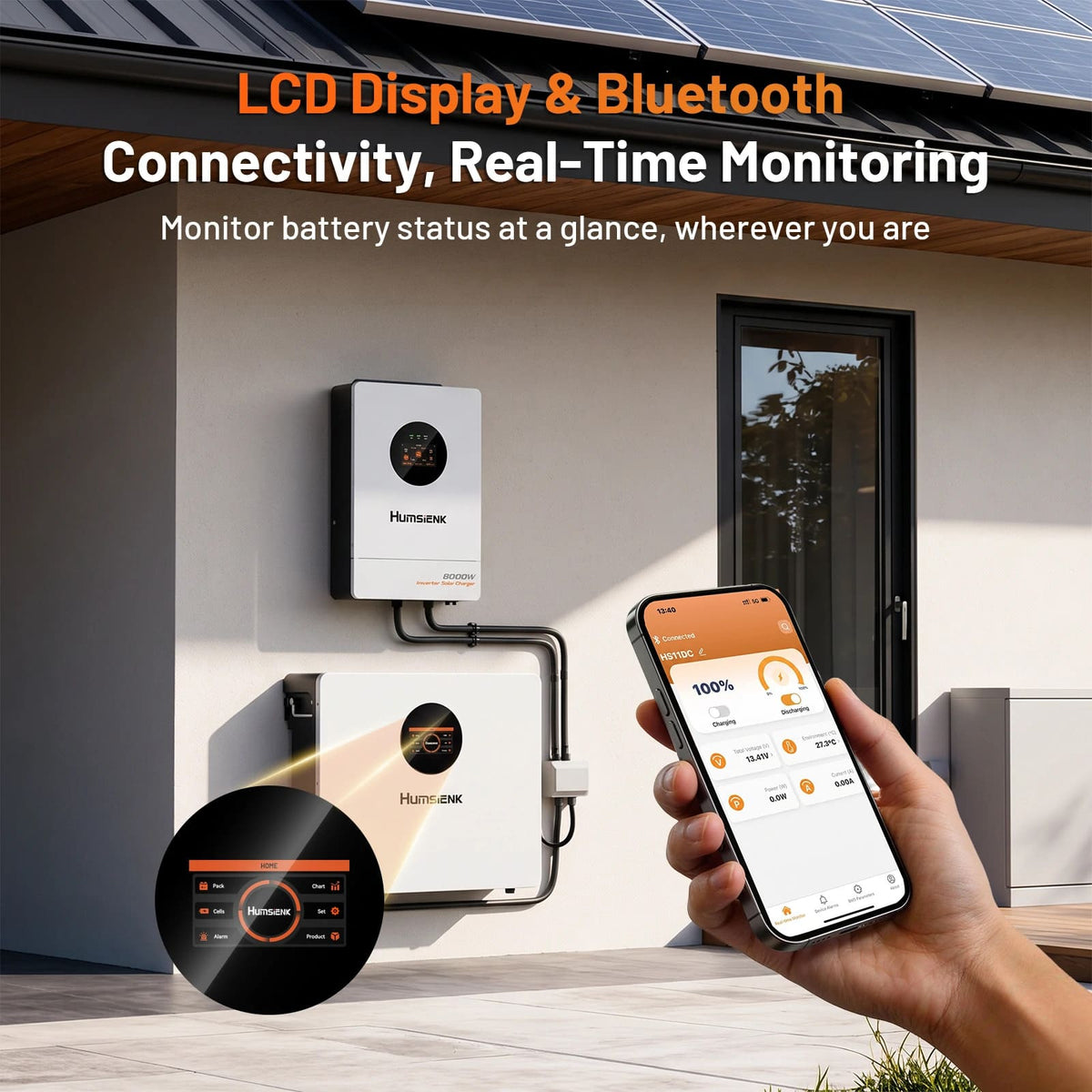

Real‑Time Touchscreen Control – Monitor Cells & Charts Instantly

Take command of your energy system with the built‑in LCD touchscreen. Monitor individual cell voltages, track charge/discharge curves, and view real‑time performance charts at a glance. No apps, no guesswork – just instant, on‑device access to your battery's health, status, and historical data. Stay informed, stay in control.
Humisenk LCD touchscreen battery interface displaying real-time cell data, charts, and system status for easy energy management. PCHumisenk LCD touchscreen battery interface displaying real-time cell data, charts, and system status for easy energy management. Mobile

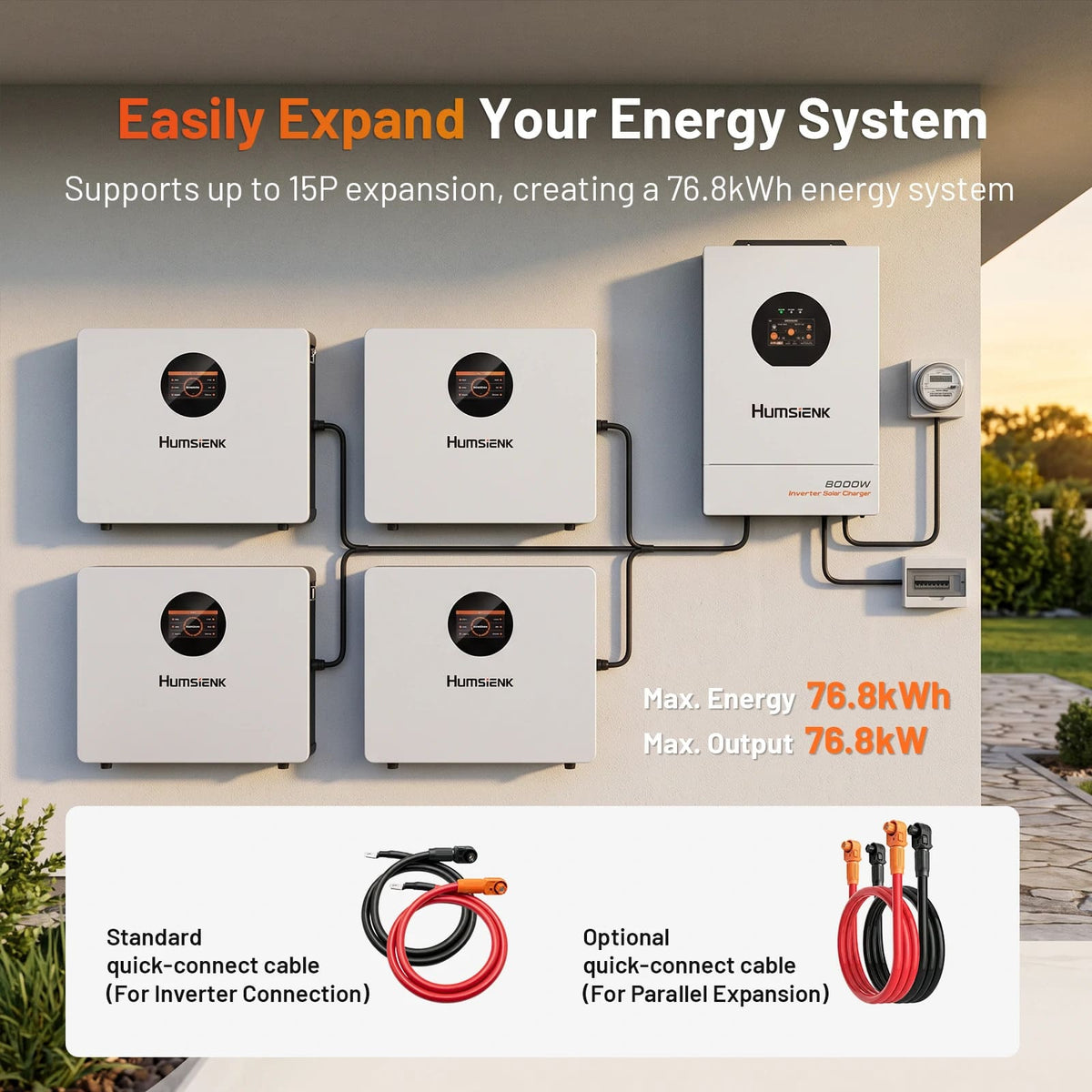

Scale Up to 15 Parallel Batteries – 76.8kWh Max Energy for Whole-Home Outage Protection

Connect up to 15 units in parallel to build a massive 76.8kWh storage system with 76.8kW output. Customize your capacity, scale anytime, and enjoy reliable daily power – from RV to whole-home backup.
Humsienk Battery parallel system supports 15 units, 76.8kWh max storage and 76.8kW load for scalable home energy backup.PCHumsienk Battery parallel system supports 15 units, 76.8kWh max storage and 76.8kW load for scalable home energy backup.Mobile

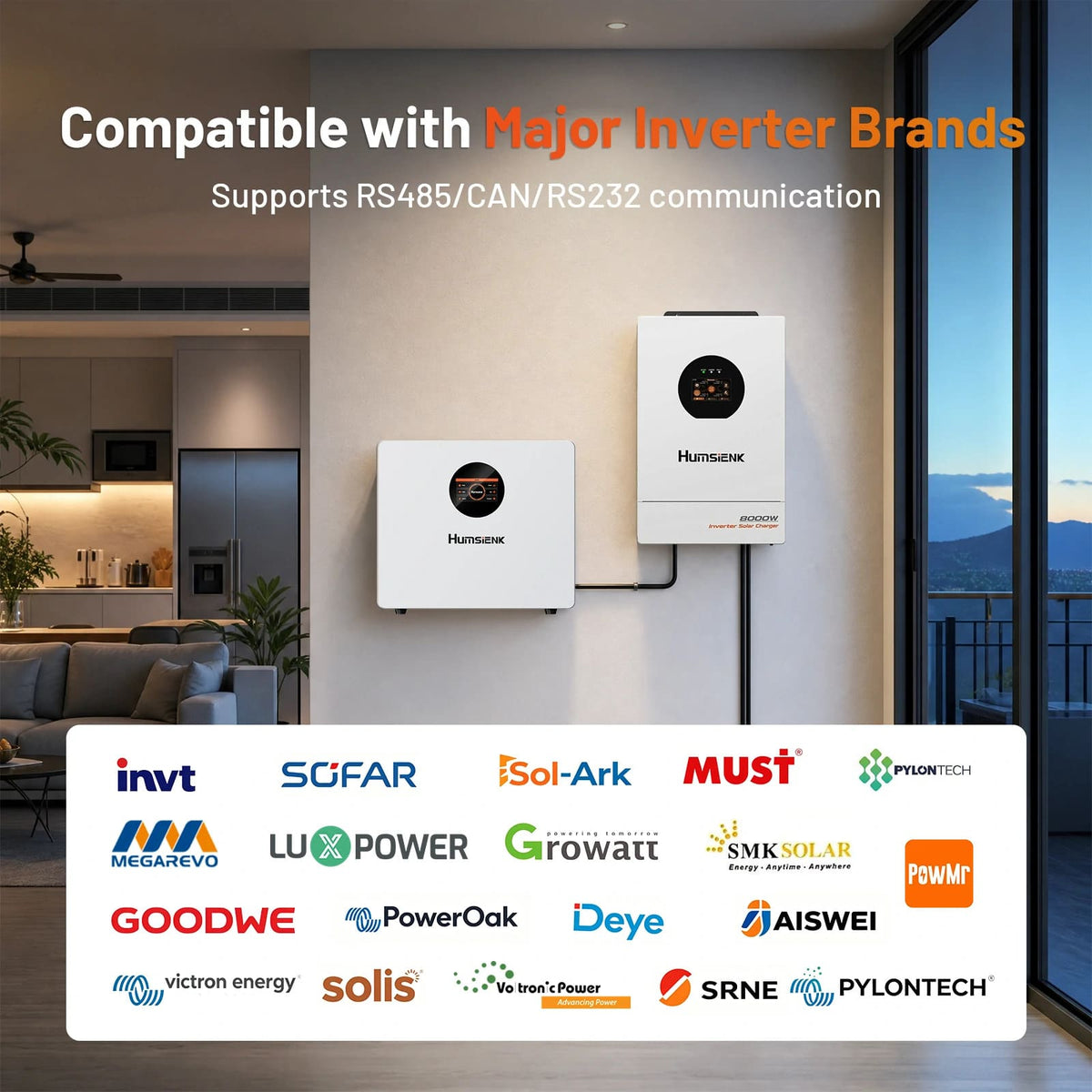

Universal Inverter Compatibility – Seamlessly Pair with 20+ Top Solar Brands

Simplify your solar projects with guaranteed compatibility. This battery supports a wide range of industry‑leading inverters – Victron, Growatt, Deye, Solis, SRNE, Megarevo, and SOFAR – ensuring smooth communication and optimal performance. No adapter hassles, no protocol mismatches. Just clean, reliable energy storage that fits perfectly into your existing or planned solar ecosystem.
Humsienk battery inverter compatibility chart supporting Victron, Growatt, Deye, Sol-Ark, Solis, SRNE, MUST, and Pylontech brands.PCHumsienk battery inverter compatibility chart supporting Victron, Growatt, Deye, Sol-Ark, Solis, SRNE, MUST, and Pylontech brands.Mobile

3 Super‑Optimized Designs – Space‑Saving, Dual‑Safety & 10‑Year Durable LiFePO₄

The wall‑mounted design saves 30% space compared to four 12V 100Ah batteries in series. The dual‑layer safety system (100A BMS + 125A circuit breaker) provides complete protection against over‑charge, short circuits, and faults. Built with a rugged metal shell and IP54 rating, it withstands -4°F~140°F extremes and delivers 6,000+ deep cycles for a 10‑year lifespan. Compact, safe, and built to last.
Humsienk wall-mounted LiFePO4 battery with 30% space saving, 100A BMS and 125A circuit breaker dual safety, IP54 metal shell, -4F to 140F temperature range, and 6000+ cycle life for 10-year durability.PCHumsienk wall-mounted LiFePO4 battery with 30% space saving, 100A BMS and 125A circuit breaker dual safety, IP54 metal shell, -4F to 140F temperature range, and 6000+ cycle life for 10-year durability.Mobile

Frequently Asked Questions

What are the environmental requirements for installing a wall-mounted battery?
How do I connect the battery to an inverter?
 Is communication necessary?
How can I maximize the lifespan of my battery?
What are the rules for connecting multiple batteries in parallel?
