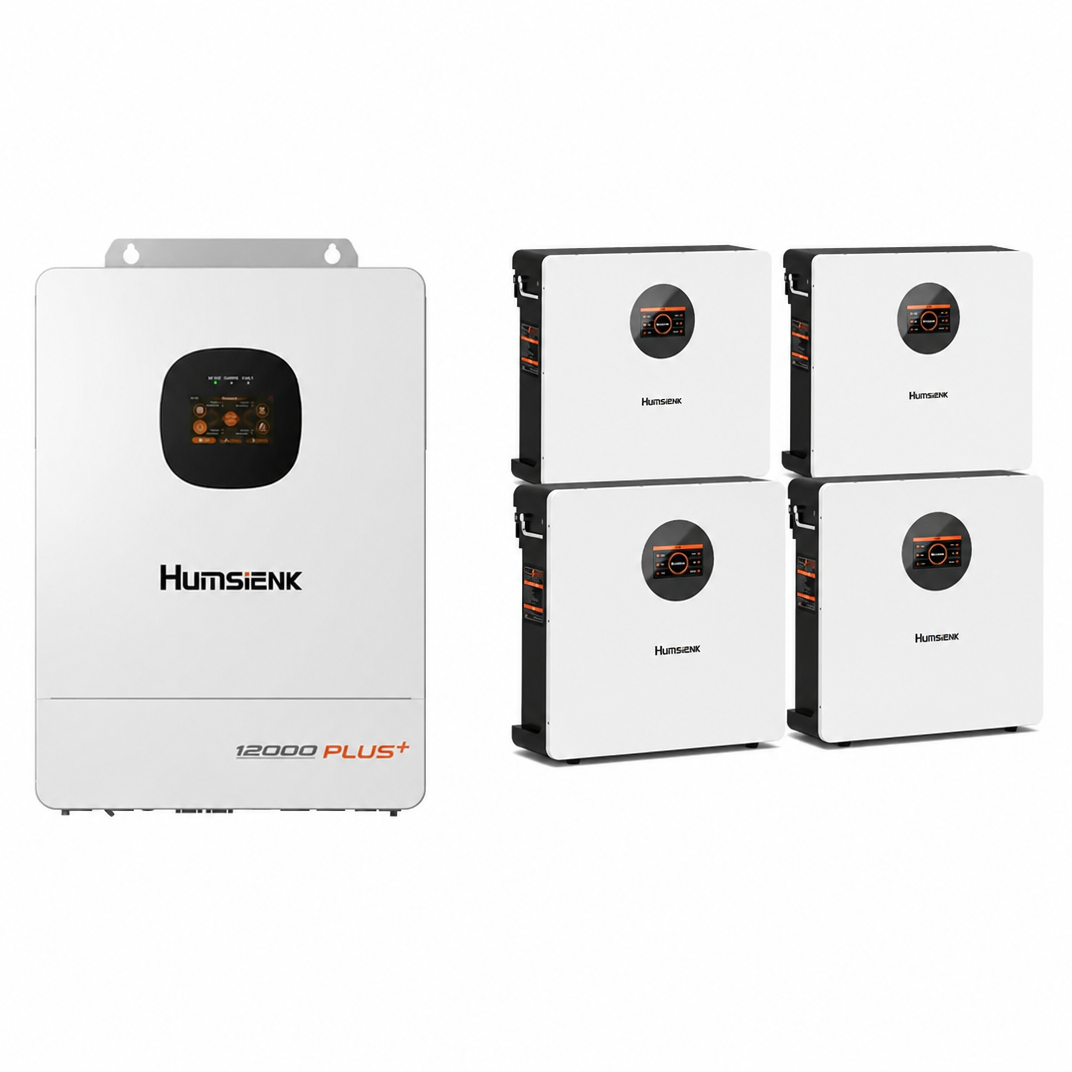

Humsienk 48V 400Ah Wall-Mounted LiFePO₄ Battery 20.48kWh with 12kW Inverter
20.47 x 5.57 x 18.5 in | 104.05 lbs
- High Capacity & Long Endurance: 5120Wh (48V 100Ah) large capacity, meeting multi-device power needs for households.
- Active Balancing: Max. 3A active current balancing, trigger by 15mv cell voltage difference.

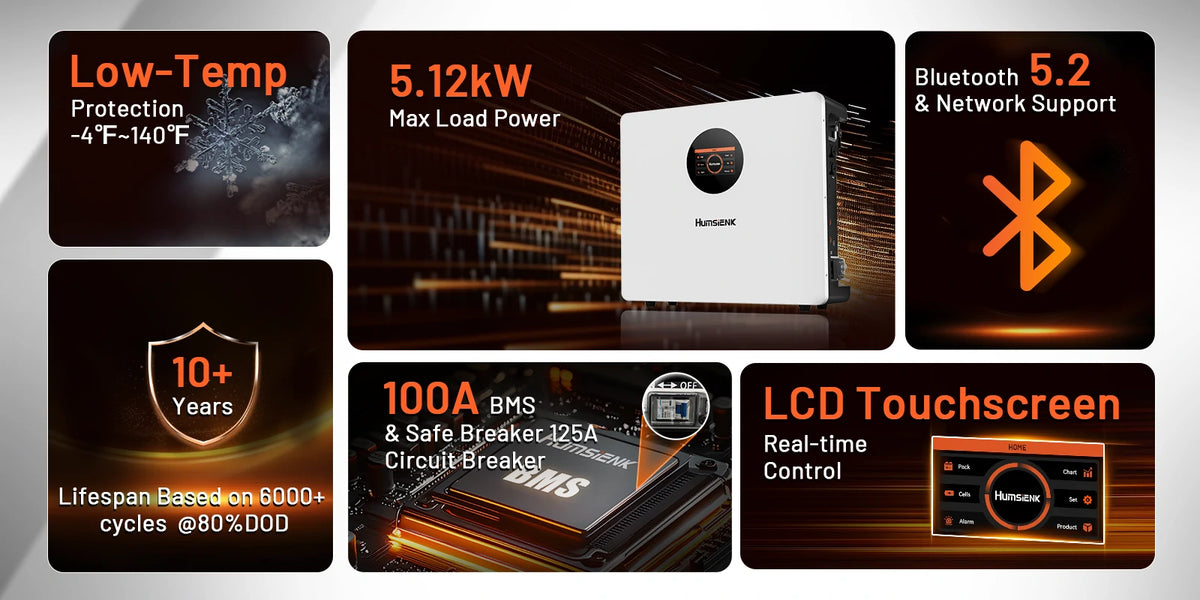

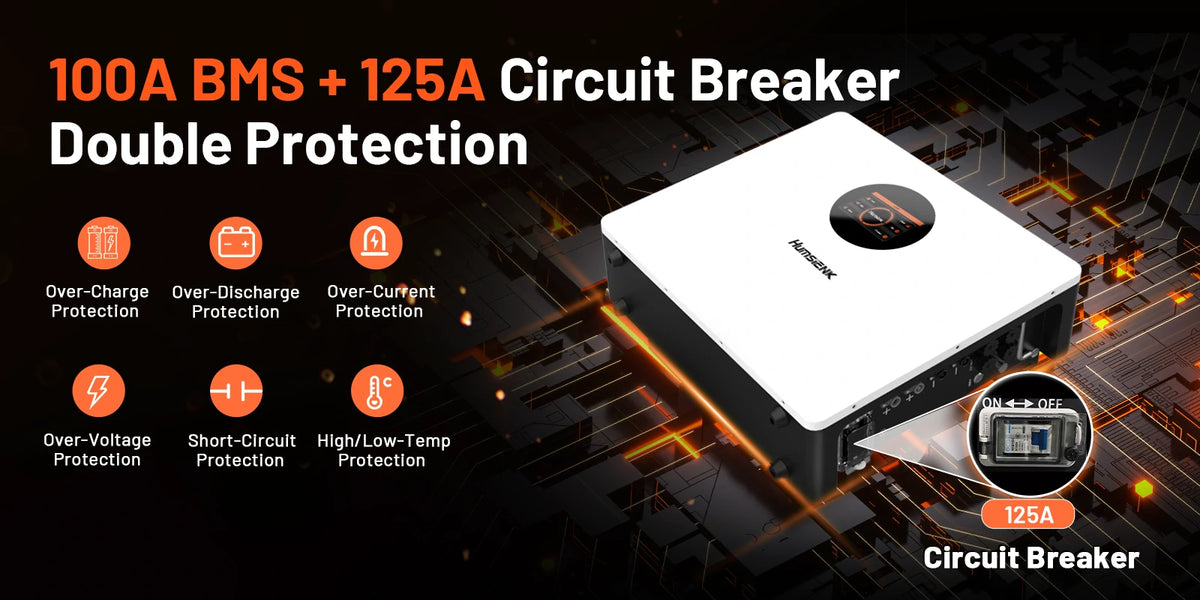

- Double Safety Protection: 100A BMS+125A circuit breaker, 6-fold protection (over-charge/discharge/current/voltage, short-circuit, high-low temp).
- Long Cycle Life: 6000 cycles @80%DOD, over 10 years of durable lifespan.

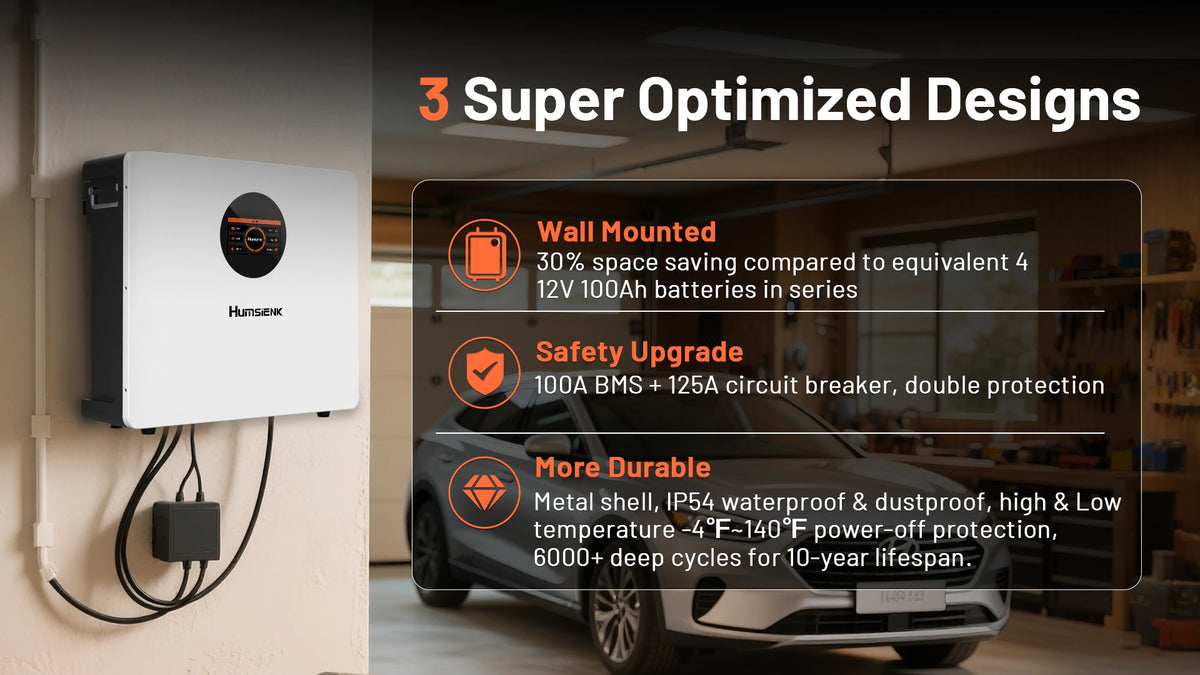

- Wall-Mounted Space Saving: 30% space saved vs 4×12V 100Ah series batteries, easy to install.

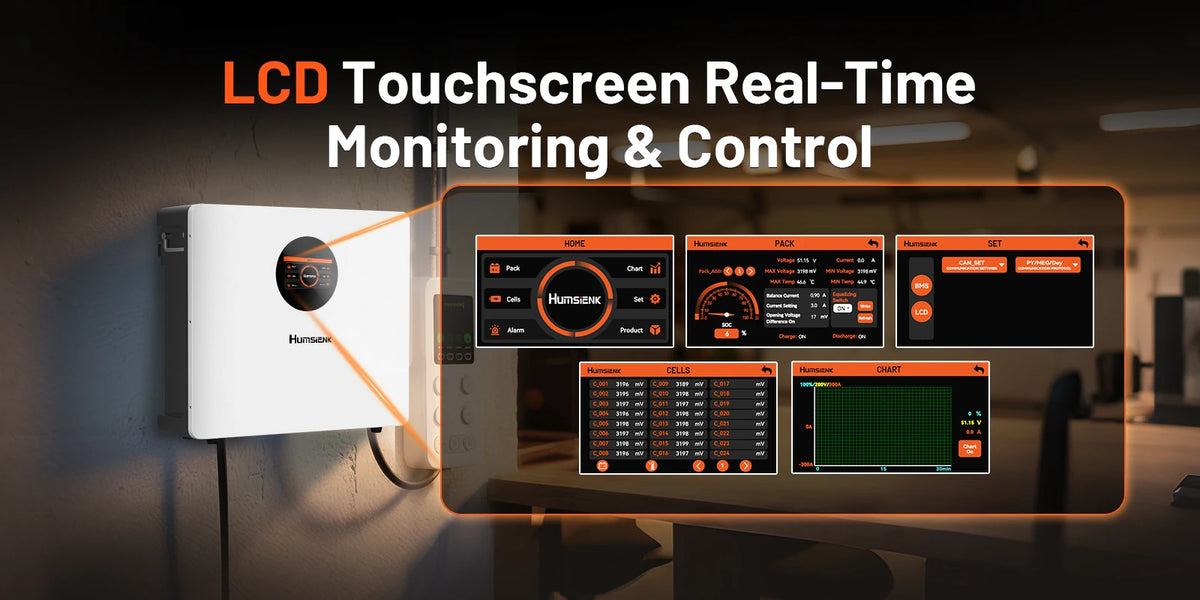

- Smart Monitoring & Management: touchscreen+Bluetooth+mobile/computer APP, real-time battery status control.

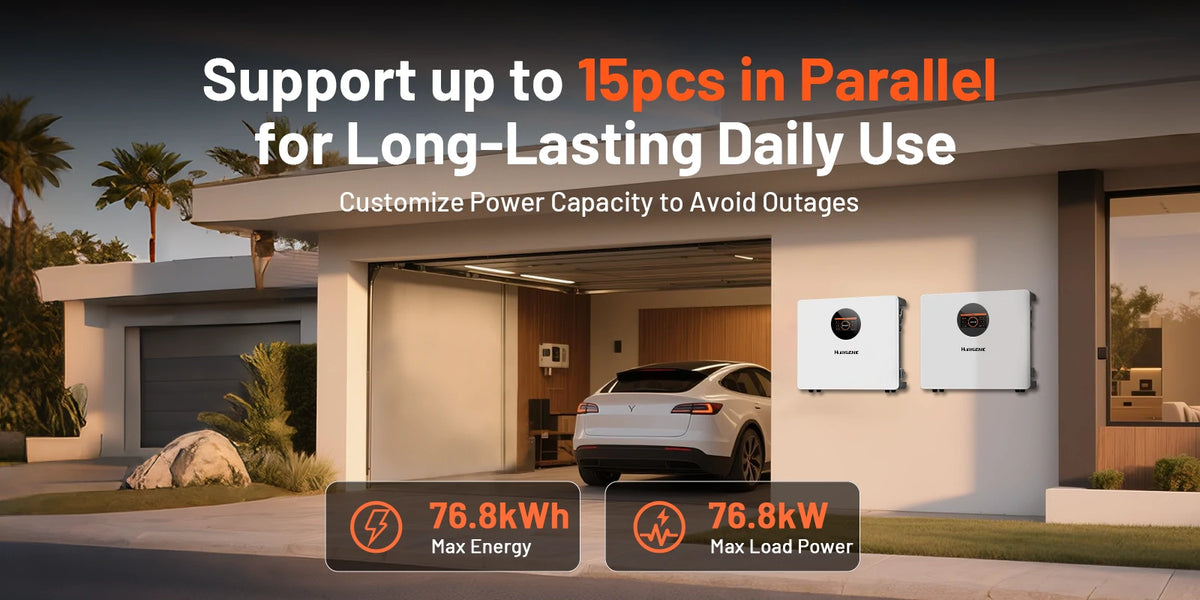

- Max. 15-Unit Parallel Expansion: Up to 15 units in parallel, total energy 76.8kWh & total power 76.8kW.
- All-Weather Stable Operation: IP Rating 54 waterproof & dustproof, discharges at -4℉~140℉, charges at 32℉~131℉
- Various Inverters Compatibility: Compatible with mainstream inverter brands like Victron, Pylontech, Growatt, Deye, etc.
- Multi-Scenario Empowerment: Applicable to off-grid homes, solar systems, RVs, marine, etc.
Hurry! Only--items left in stock!
-
Local Free & Fast Delivery
-
24/7 Online Support
-
30-Day Return & Refund
-
5-Year Free Wararnty
See How Humsienk Performs
Real homes, RVs, boats and off-grid setups - tested by owners and creators.
-
ComboThis Wall-Mounted Battery is a Game Changer
This combo has some serious power capacity. With 8kw on tap and 3600 watt inverter the possibilities are there.Sprinkle some solar on top for endless power.
-
Home BackupThe Future of Home Batteries is Here
Built with top-grade A+ LiFePO4 cells, this 48V 100Ah battery delivers over 6000 deep cycles at 80% DOD—providing clean, reliable power for 10+ years. That’s 30x longer life than traditional lead-acid batteries. Each unit stores 5.12 kWh of energy, perfect for solar systems, off-grid power, and home backup.
-
TestTesting the CHEAPEST 48v 100Ah Wall Mount battery I can find - Humsienk
In this video, I test the Humsienk 48V 100Ah wall mount battery, a 5.12kWh system that is currently the cheapest wall mounted battery I have personally tested.
-
OverviewHumsienk 48v LFP Wall Mount Battery - Overview, Install, Discharge Test
In this video, I dive into the Humsienk 48V LFP Wall Mount Battery – a powerful, reliable lithium iron phosphate (LiFePO4) battery designed for off-grid solar systems, home energy storage, and DIY power projects

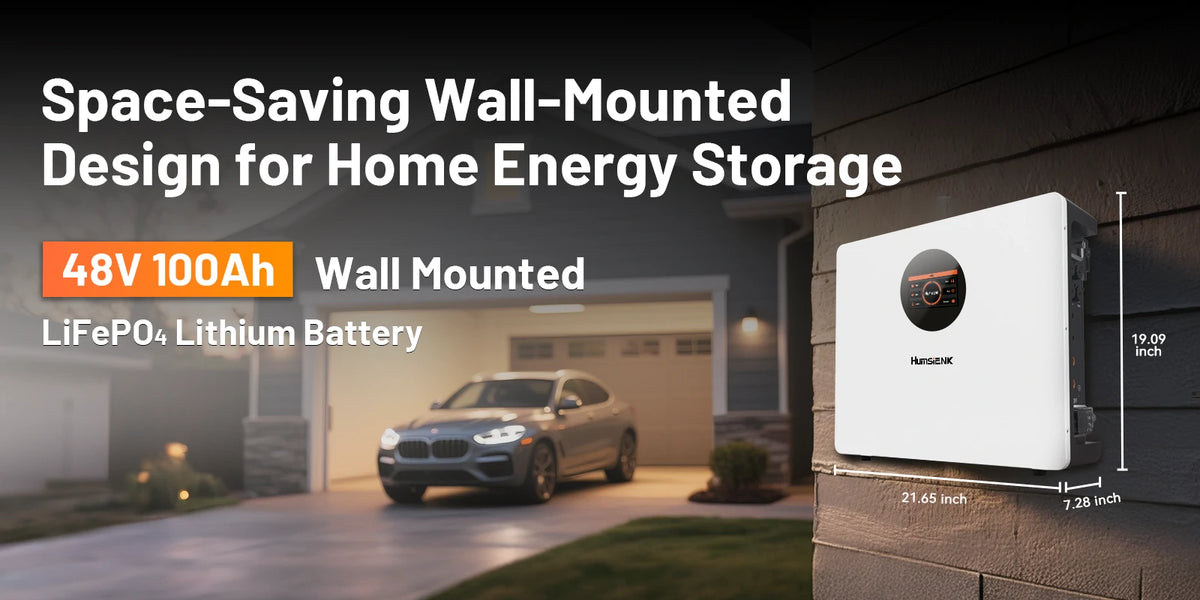

Space-Saving 48V 100Ah Wall-Mounted LiFePO₄ Battery – Sleek Power for Modern Homes
Maximize your energy without sacrificing floor space. Humsienk 48V 100Ah wall-mounted lithium battery measures just 19.09 x 21.65 x 7.28 inches, mounting flush against any wall for a clean, professional installation. Perfect for home solar backup, off-grid cabins, and peak shaving – this LiFePO₄ powerhouse delivers reliable, silent, and maintenance-free energy storage right where you need it.
100A
BMS
100A
Continuous
3A
Active Balancing
Mechanical | Shell Type Metal | Size 550 x 485 x 185.5 mm / 21.65 x 19.09 x 7.28 in |
Weight 50 ± 0.5kg / 110.23 ± 1.10 lbs | Nominal Voltage 51.2V | |
Nominal Capacity 100Ah | Energy 5120Wh | |
Electrical Characteristics | Terminal M8 | Cycle Life 6,000@DOD80% |
Months Self Discharge s3%/Month | Efficiency Of Charge 100%@0.2C | |
Efficiency Of Discharge 96~99%@0.5C | Charge Voltage 56.8-58.4V | |
Standard Charge/Discharge | Charge Mode CC/CV | Charge Recommended Current 20A |
Max. Continuous Charge Current 100A | Discharge Recommended Current 50A | |
Max. Continuous Discharge Current 100A | Discharge Cut-Off Voltage 40V | |
Charge Temperature 35.6°F~122°F / 2°C~50°C | Discharge Temperature -4°F~149°F/-20°C~65°C | |
Environmental | Storage Temperature -4°F~113°F/-20°C~45°C | Ingress Protection Rating IP54 |
Which Home Storage Battery Fits Your Setup?
| Product |
48V 100AhWall-mounted |
48V 300AhWall-mounted |
48V 314AhFloor-standing |
48V 628AhWhole Home |
| Capacity | 5.12kWh | 15.36kWh | 16.07kWh | 32.15kWh |
| Dimensions | 21.65 × 7.28 × 19.09 in | 35.04 × 24.41 × 8.58 in | 24.40 x 10.00 x 35.04 in | 33.46 × 16.93 × 28.82 in |
| Weight | 104.05 lbs | 260.15 lbs | 294 lbs | 530.21 lbs |
| BMS Current | 100A | 200A | 200A | 200A |
| Bluetooth | ||||
| Max Power | 5120W | 10.24kW | 10.24kW | 10.24kWh |
| IP Rating | IP54 | IP654 | IP54 | IP65 |
| Best Application | Home Storage, Off-grid, DIY Solar Power, Data Base | Home Storage, Off-grid, DIY Solar Power, Data Base | Home Storage, Off-grid, DIY Solar Power, Data Base | Home Storage, Off-grid, Data Base |
| Price (USD) | $999.99 USD | $2,499.99 USD | $2,799.99 USD | $4,499.99 USD |
Frequently Asked Questions
To ensure optimal and safe operation, follow these guidelines :
- Environment: Choose a clean, cool, and well-ventilated area, away from direct sunlight and flammable materials.
- Ambient Temperature: The ideal operating temperature range is between 0°C and 45°C (32°F - 113°F) for charging. Avoid using the battery in extreme temperatures.
- Space: Maintain sufficient clearance around the battery as specified in the manual to ensure proper heat dissipation and access for wiring.
- Wall Strength: Ensure the wall can securely support the weight of the battery.
Connecting communication cables (like RS485, CAN, or RS232) between the battery and a compatible inverter allows for "closed-loop" communication. This enables the inverter to receive real-time data from the Battery Management System (BMS) for more precise charging and optimal performance.
- Avoid Extreme Temperatures: High heat accelerates degradation, and charging at temperatures below 0°C (32°F) can cause permanent damage unless the battery has a built-in self-heating function .
- Use a Compatible Charger: Always use a charger or inverter with charging profiles specifically designed for LiFePO4 batteries.
- Optimal Storage: If storing the battery for a long period, charge it to 40%-60% state of charge and keep it in a cool, dry place. Check and recharge it every 3-6 months.
- Regular Use: Periodic full charge/discharge cycles can help the BMS calibrate the state of charge reading for better accuracy.
Most wall-mounted batteries support parallel connection to increase total capacity (e.g., from 5kWh to 15kWh). When paralleling, always use batteries of the same brand, model, and age. Use cables of the same length and gauge for each battery to ensure balanced charging/discharging. Adhere to the manufacturer's limit on the maximum number of parallel units.
Super battery!
Espero disfrutar de una buen calidad
Todo llegó en muy buen estado en un tiempo récord.
Estoy muy contento con mi compra ninguna queja recomendado este artículo un 1000% ojalá y todas las ajencias de EEUU brindaran un servicio así
Great
Plugged it into my system right off the truck powering the inverter in minutes.
Thank you all.
This seems to be a very Good Battery.
I have had very cloudy skies since I installed the
battery. But seems to charge faster then the other two batteries beside it.
It has been working Flawlessly since it was connected to the system ten days ago.
I am Happy with its performance at this time.
I have two of these batteries and they work perfectly. The only issue I have had is with shipping. Both batteries arrived damaged, one was damaged much more then the other. The company was quick to offer a discount in return for keeping the batteries.
Good product, easy to install and commission. I bought two 314AH home storage. I just hoped it has WIFI connectivity for easier remote monitoring.
Haven’t installed products as of yet, but they look great!
Wish the shipping was faster, and the communication during the shipping process needs to improve greatly.
The battery is performing superbly and is well integrated into my battery bank.
What a fantastic battery. Build quality, capacity, price. All come together for a great battery
I had good customer service, the battery shipping was good an packaged well the quality of battery appears very nice you can see the inspection video https://youtu.be/an6IC2EYY5I you can see my unboxing video https://youtu.be/U3Onl1TdDKE and watch for future update videos
over all I am really happy with both the company customer service and the battery's I recived
The only issue I have had is the battery cables are not included to connect battery to battery
Communication wasn't the best to start but improved rapidly. Truck delivery couldn't have been better and the driver was great.
My batteries were packed incredibly well. I only have one crate that was damaged but the battery was not touched and seems fine so far. I ordered 4.
Absolutely awesome good build quality arrived. Perfect, sealed connections beyond the call of duty. Charge and discharge.Flawlessly every day could not be happier.
The battery is good value the money. The capacity, cables, and form factor are all great. The Bluetooth app works well and I was able to communicate with EG4 6000XP (capacity and SOC) using the inverter's lithium battery setting 2.
I had two issues with my batteries. First the packing material were insufficient to protect the battery during shipping. The steel case appears to be a bit thin for the weight of the battery and a couple of corners had some damage and the front panel of one of my two batteries also had dimples in the steel from light damage.
Another issue I experienced with both batteries was related to low temperature discharge cut off. There are two low temperature cut off settings, one for charging and the other for discharging. The low temperature cut off for charging works correct, but the low temperature cut off for discharge does not. When the battery temperature falls below the charge cut off set point, the battery also also disables discharge (despite a lower discharge cutoff set point). This effectively means you can't discharge these batteries below freezing.
I was able to overcome the low temperature discharge cut off issue by building a small insulated enclosure and added some greenhouse heating pads to keep the batteries warm enough to charge and discharge.
Although there wasn't a firmware patch to fix the low temperature discharge cutoff, communication with Humsiemk customer service was pretty good. They were responsive and made a genuine effort to achieve a satisfactory outcome.
Nice Bluetooth LifePo4 battery. Just hook up to LiTime 48V 5000watt solar inverter and Sungold solar panels. Working well.
Batteries arrived fast and on schedule. Capacity and technical specifications as listedon site. 4 in total mounted on my wall running my house at the moment.
